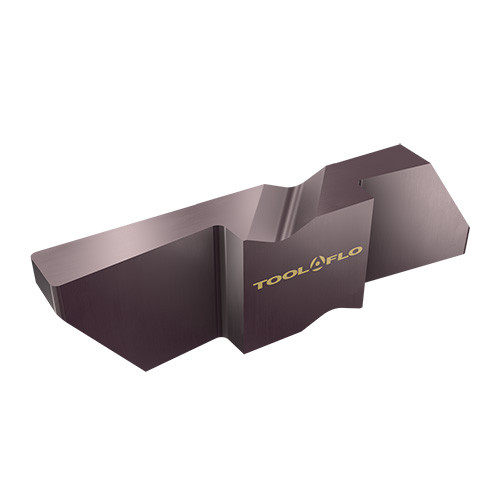

FLFT-4189L AC3R
| Cutting Width (CW) | 0.189″ | Grade | AC3R |
| Insert Length (INSL) | 1.136″ | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0225″ | Application | | Int Ext Face Grooving Flo Lock | |
| Cutting Depth Maximum (CDX) | 0.55″ | Depth of Cut Maximum (APMX) | 0.55″ |
| Insert Thickness Total (S1) | 0.453″ | Measurement Type | Inch |
| Shape | Parrallelogram | Coating | TiAlN |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.255″ |
Product Features
| Family Description | External Extra Deep Face Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended) | Country of Origin | USA |
Shipping Info
Package Weight
0.001
