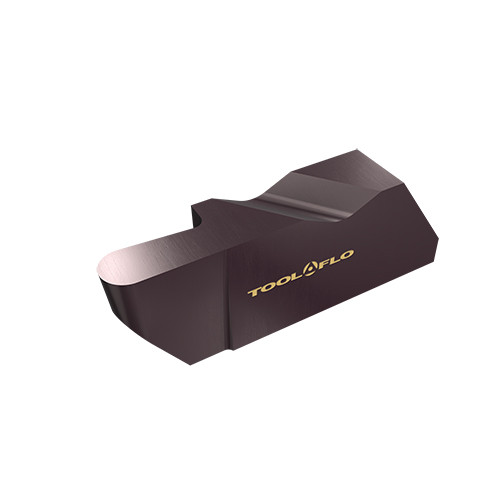

FLRD-4094R GP50C
Grooving Insert; 0.189″ CW × 0.52″ Max Depth × 0.255″ Thickness ; Carbide ; GP50C ; TiN
| Cutting Width (CW) | 0.189″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.094″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.52″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.255″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50C | Cutting Edge Length (L) | 0.881″ |
| Shape | Parrallelogram | Height | 0.453″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Full Nose Radius Deep Grooving #4 GageFloLock Inserts with Right Hand Clamping Notch | Country of Origin | USA |
