FLRD-3062R GP50C

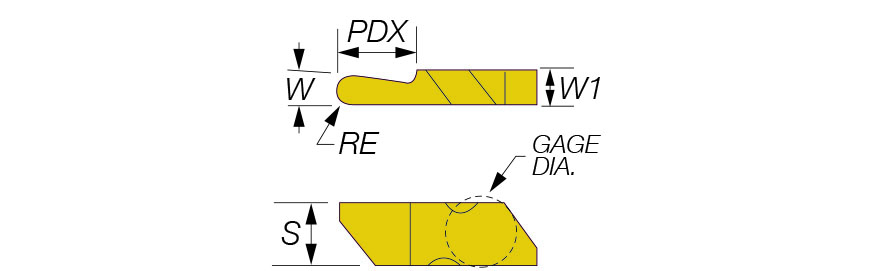

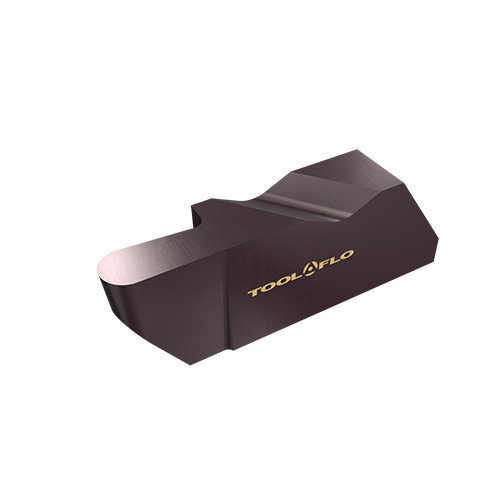

Grooving Insert; 1/8″ CW × 0.27″ Max Depth × 0.195″ Thickness ; Carbide ; GP50C ; TiN
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.062″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.27″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.195″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50C | Cutting Edge Length (L) | 0.502″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Full Nose Radius Deep Grooving #3 GageFloLock Inserts with Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Length
1.00000
Package Width
.50000
Package Height
.30000
Package Weight
0.022
