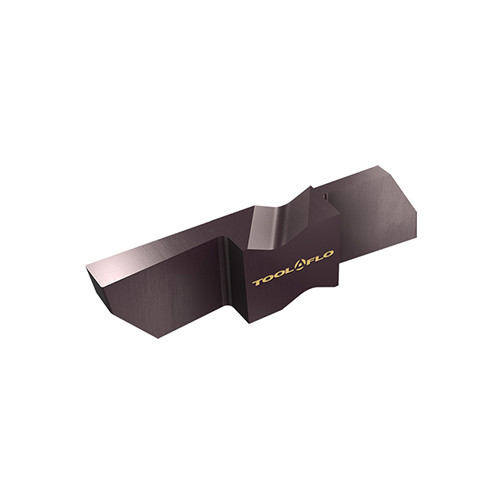

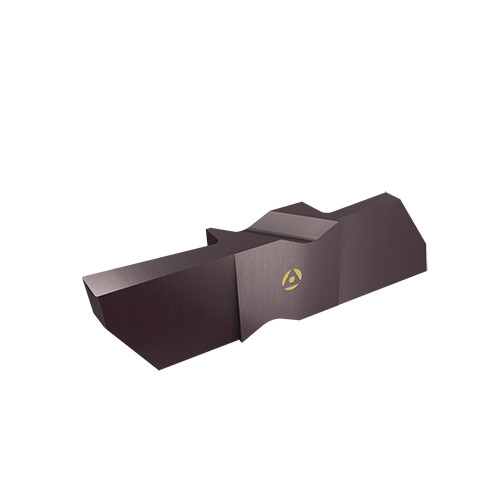

FLGT-3125R AC3R
Grooving Insert; 1/8″ CW × 0.437″ Max Depth × 0.195″ Thickness ; Carbide ; AC3R ; TiAlN
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.437″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.195″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC3R | Cutting Edge Length (L) | 0.855″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Extra Deep Grooving #3 Gage FloLock Inserts with Right Hand Clamping Notch (Double-Ended) | Country of Origin | USA |
Shipping Info
Package Weight
0.22
