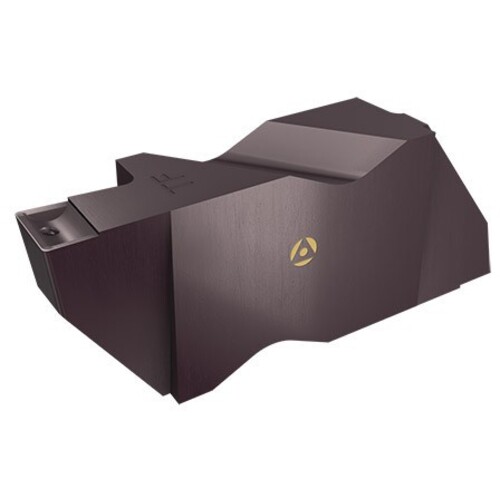

FLG-4189R-CB GP3R GP3
Grooving Insert; 0.19 mm CW × 0.25 mm Max Depth × 0.26 mm Thickness ; Carbide ; GP3 TiN ; AlTiN
| Cutting Width (CW) | 0.19 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.02 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.25 mm | Chip Breaker Type | HCB |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Metric |
| Insert Thickness (S) | 0.26 mm | Threads per Inch (TPI) | 8 |
| Coating | AlTiN | Body Material | Carbide |
| Grade | GP3 TiN | Cutting Edge Length (L) | 0.64 mm |
| Shape | Parrallelogram | Height | 0.45 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
