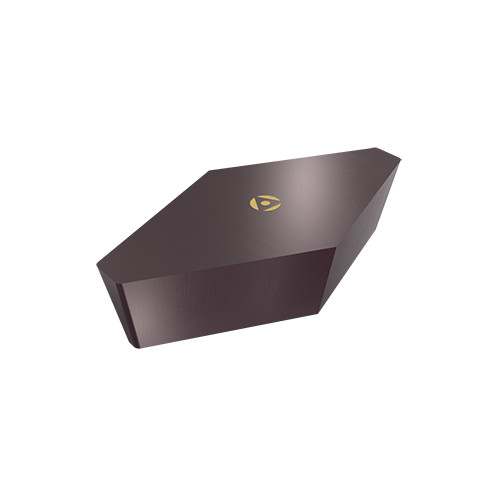

APIP 203-3H PGN-2AH AC6D
Grooving Insert; 0.197″ CW × 0.203″ Max Depth × 0.187″ Thickness ; Carbide ; AC6D ; TiAlN
| Cutting Width (CW) | 0.197″ | Grade | AC6D |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.203″ | Application | | External Grooving | |
| Insert Thickness (S) | 0.187″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 1″ | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Coating | TiAlN | Insert Width (W1) | 0.574″ |
Product Features
| Family Description | API 46° Ring Grooving Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.001
