GBA-32R200 PR930
Grooving Insert; GBA-32R200 PR930 2 mm CW × 2.5 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; TiCN

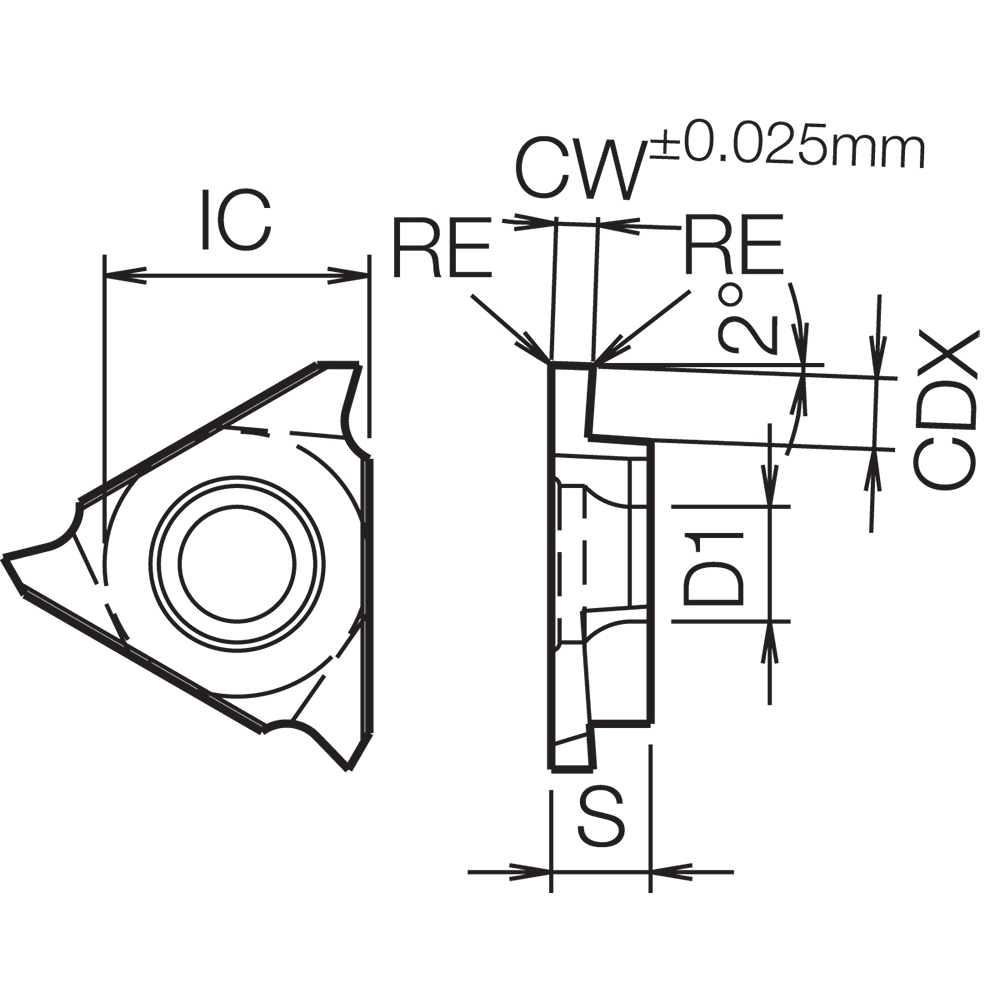

| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | Steel | Stainless Steel |
| Cutting Depth Maximum (CDX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | GBA |
| Fixing Hole Diameter (D1) | 4.4 mm | Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive | Mounting Style | Screw | Clamp |
| Coating | TiCN | Series/List # | GBA |
| Grade | PR930 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
Product Features
| Country of Origin | JP |
Shipping Info
Package Weight
.1000
