GBA43R031N PR1215
Grooving Insert; 0.0311″ CW × 0.0787″ Max Depth × 3/16″ Thickness × 1/2″ IC ; Carbide ; PR1215 ; MEGACOAT ; Series GBA

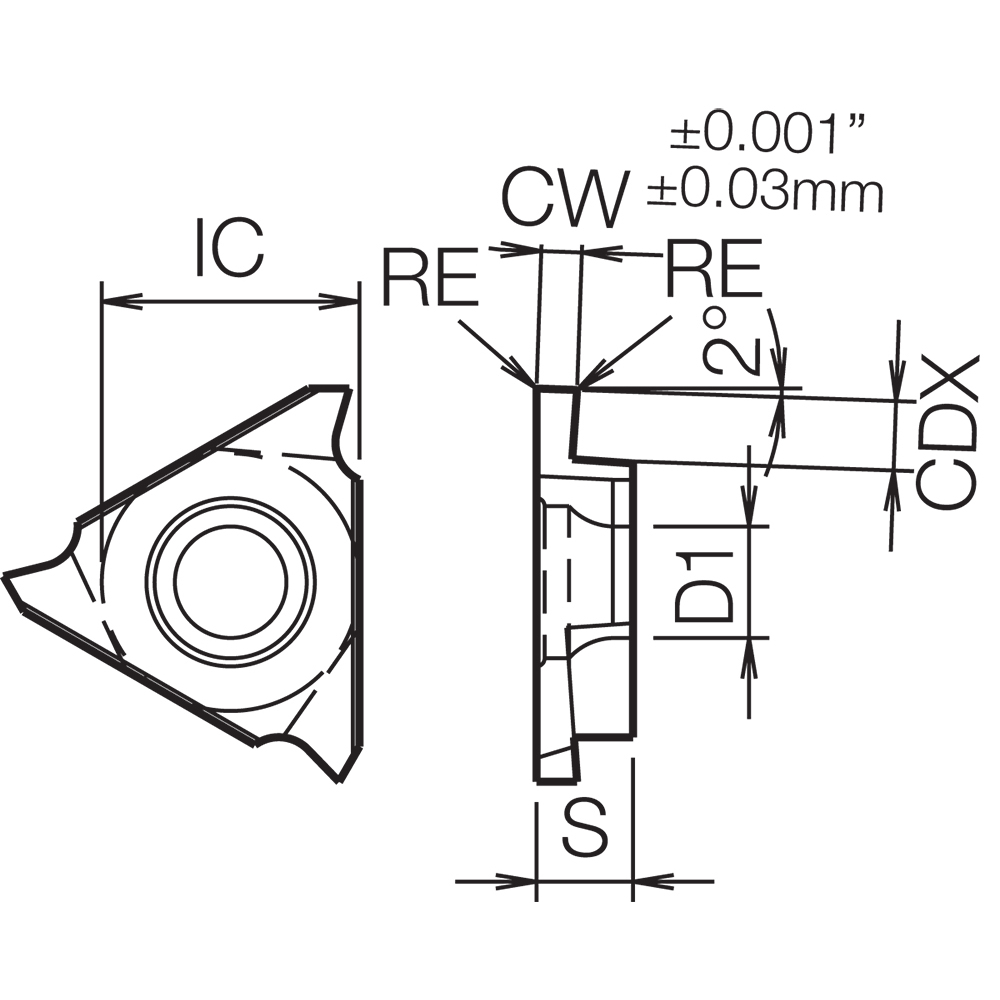

| Cutting Width (CW) | 0.0311″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0079″ | Chip Breaker Type | N |
| Cutting Depth Maximum (CDX) | 0.0787″ | Insert Style | GBA |
| Insert Thickness (S) | 3/16″ | Insert Seat Size Code (SSC) | 43 |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 0.2165″ | Mounting Style | Clamp |
| Coating | MEGACOAT | Series/List # | GBA |
| Grade | PR1215 | Coating Process | PVD |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Alternate Manufacture # GBA43R031NPR1215 | Country of Origin | Japan |
Shipping Info
Package Weight
0.1
