KCG-3094R A65 CERA NOTCH
Grooving Insert; 0.0941″ CW × 0.1496″ Max Depth × 0.195″ Thickness ; Ceramic ; A65 ; | Al2O3 | TiC | ; Series Cera-Notch

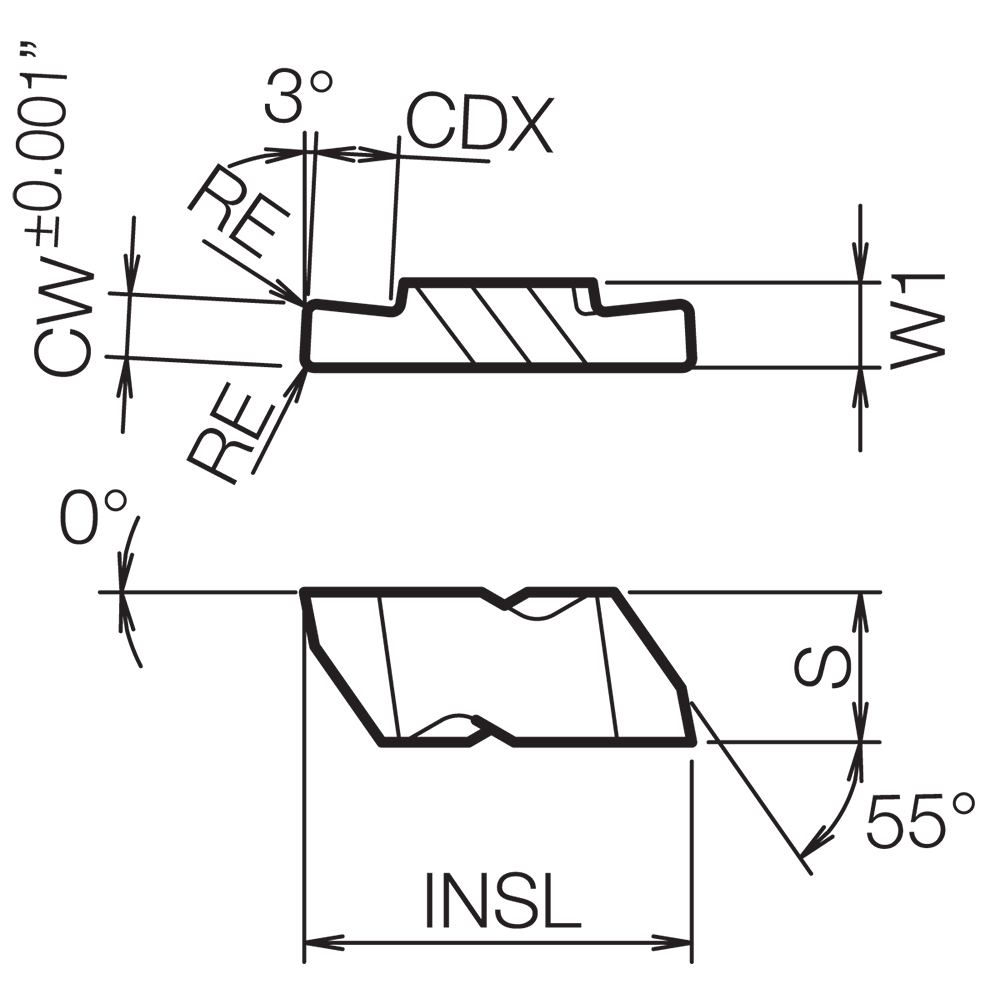

| Cutting Width (CW) | 0.0941″ | Overall Length (OAL) | 0.8098″ |
| Corner Radius (RE) | 0.0079″ | Insert Style | KCG |
| Cutting Depth Maximum (CDX) | 0.1496″ | Insert Seat Size Code (SSC) | 3094 |
| Insert Thickness (S) | 0.195″ | Number of Teeth | 2 |
| Coating | | Al2O3 | TiC | | Mounting Style | Clamp |
| Grade | A65 | Series/List # | Cera-Notch |
| Cutting Edge Material | Ceramic | Coating Process | Uncoated |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KCG3094RA65 | Country of Origin | Japan |
Shipping Info
Package Weight
.1000
