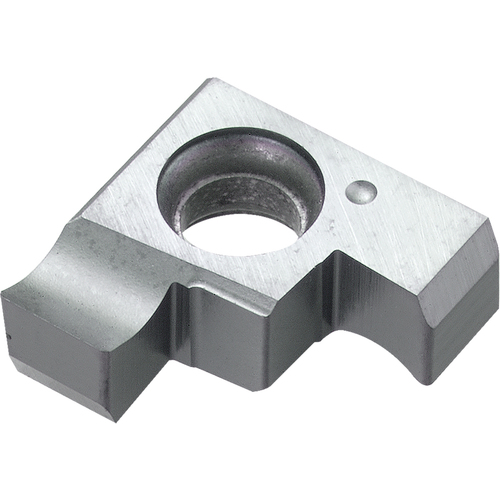

GER150-010A TN6020 INSERT
Grooving Insert; 1.5 mm CW × 1.5 mm Max Depth ; Cermet ; TN6020 ; TiCN ; Series SIGE

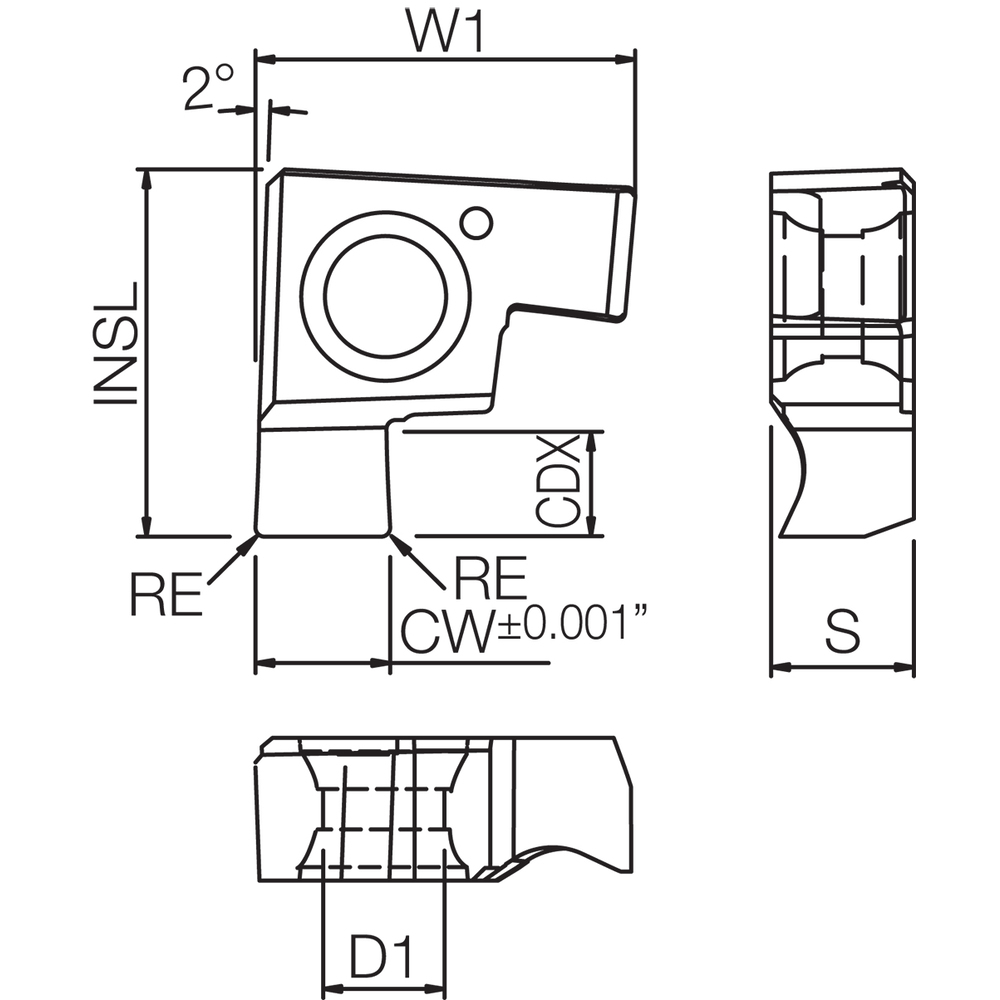

| Cutting Width (CW) | 1.5 mm | Chip Breaker Type | A |
| Corner Radius (RE) | 0.1 mm | Overall Length (OAL) | 6.5 mm |
| Cutting Depth Maximum (CDX) | 1.5 mm | Insert Style | GE |
| Fixing Hole Diameter (D1) | 2.5 mm | Insert Seat Size Code (SSC) | 150010 |
| Coating | TiCN | Number of Teeth | 2 |
| Grade | TN6020 | Mounting Style | Clamp |
| Shape | 2-edge | Series/List # | SIGE |
| Cutting Edge Material | Cermet | Coating Process | Uncoated |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # GER150010ATN6020 | Country of Origin | Japan |
Shipping Info
Package Weight
.1000
