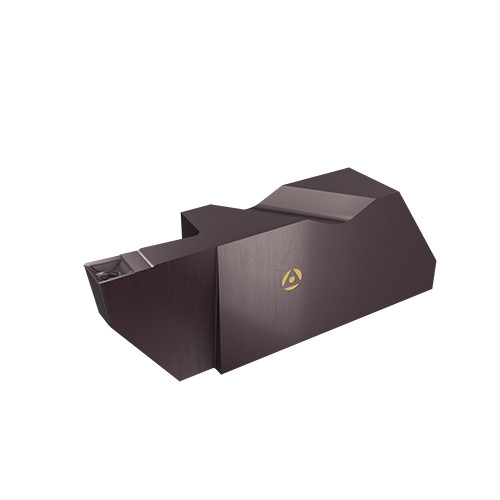

FLGD-4250R-CB AC3A
Grooving Insert; 1/4″ CW × 0.52″ Max Depth × 0.255″ Thickness ; Carbide ; AC3A ; TiAlN
| Cutting Width (CW) | 1/4″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.0225″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.52″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.255″ | Chip Breaker Type | CB |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC3A | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.886″ |
| Cutting Edge Material | Carbide | Height | 0.453″ |
Product Features
| Family Description | Internal and External Deep Grooving #4 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Length
1.38000
Package Width
.45000
Package Height
.25000
Package Weight
0.05
