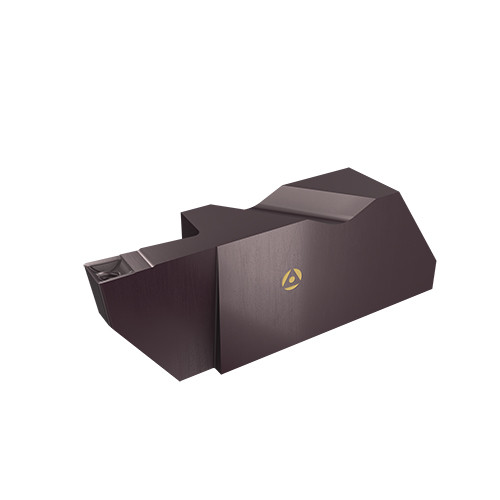

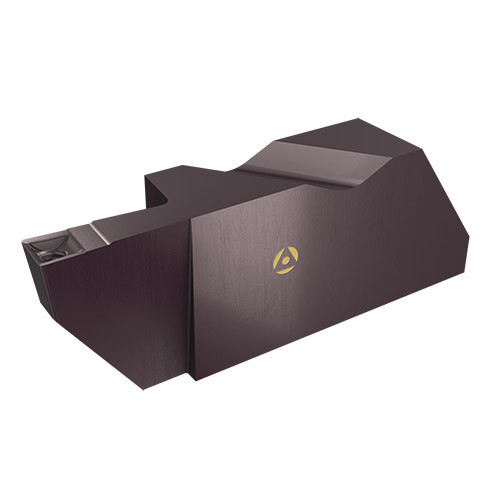

FLGD-3094R-CB AC50C
Grooving Insert; 0.094″ CW × 0.27″ Max Depth × 0.195″ Thickness ; Carbide ; AC50C ; TiAlN
| Cutting Width (CW) | 0.094″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.27″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.195″ | Chip Breaker Type | CB |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC50C | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.505″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Internal and External Deep Grooving #3 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Length
1.00000
Package Width
.35000
Package Height
.19000
Package Weight
0.02
