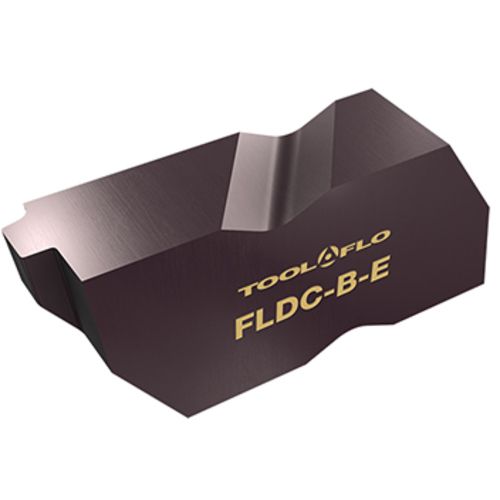

FLDC-3-11.5NPT-2E GP50C
Grooving Insert; 0.094″ CW × 0.195″ Max Depth × 1/4″ Thickness ; Carbide ; GP50 ; TiN
| Cutting Width (CW) | 0.094″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/4″ | Threads per Inch (TPI) | 11.5 |
| Coating | TiN | Insert to Shank Reference | 0.048″ |
| Grade | GP50 | Cutting Edge Length (L) | 0.405″ |
| Shape | Parrallelogram | Height | 0.344″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0
