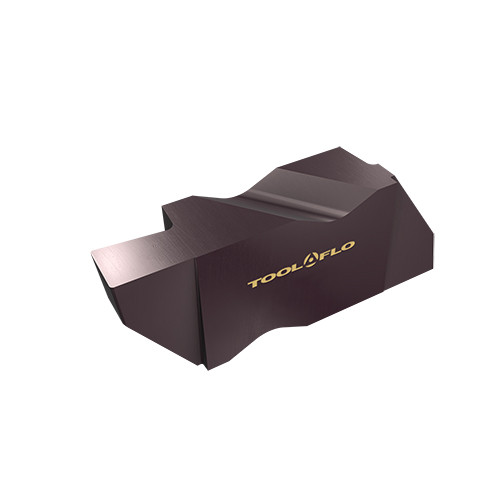

FLG-3031R C3
Grooving Insert; 0.031″ CW × 0.05″ Max Depth × 0.195″ Thickness ; Carbide ; C3 ; Uncoated
| Cutting Width (CW) | 0.031″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.0035″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.05″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.195″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | C3 | Cutting Edge Length (L) | 0.405″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Grooving #3 Gage FloLock Inserts with Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.22
