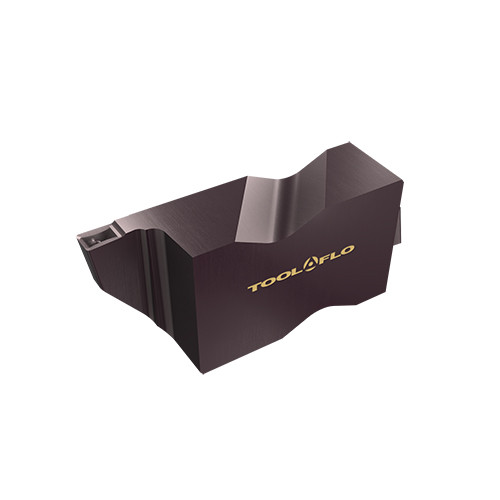

FLG-3M150L-CB AC50C
Grooving Insert; 1.5 mm CW × 3.05 mm Max Depth × 4.95 mm Thickness ; Carbide ; AC50C ; TiAlN
| Cutting Width (CW) | 1.5 mm | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 3.05 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 4.95 mm | Chip Breaker Type | CB |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AC50C | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 10.29 mm |
| Cutting Edge Material | Carbide | Height | 8.74 mm |
Product Features
| Family Description | Internal and External Grooving #3 Gage FloLock Inserts with Chip Control and Left Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.000
