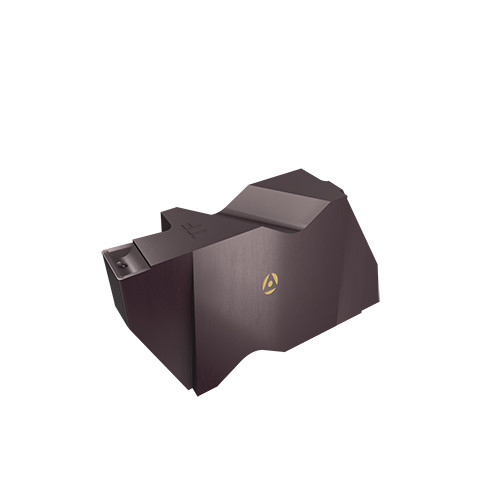

FLG-2M300R-CB GP50C
Grooving Insert; 3 mm CW × 2.79 mm Max Depth × 3.81 mm Thickness ; Carbide ; GP50C ; TiN
| Cutting Width (CW) | 3 mm | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 2.79 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.81 mm | Chip Breaker Type | CB |
| Insert Rake Angle (GAN) | 0 Degrees | Measurement Type | Metric |
| Coating | TiN | Min. Grooving Feed (fg(min)) | 0 mm/rev |
| Grade | GP50C | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 6.86 mm |
| Cutting Edge Material | Carbide | Height | 5.56 mm |
Product Features
| Family Description | Internal and External Grooving #2 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.000
