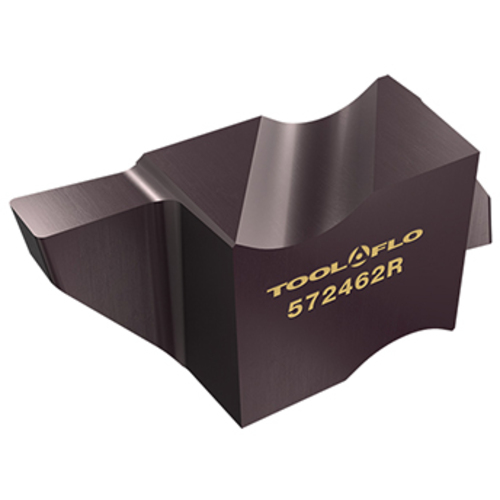

FLGP-3156R GPM6B
Grooving Insert; 0.156″ CW × 0.18″ Max Depth × 0.195″ Thickness ; Carbide ; GPM6B ; TiN
| Cutting Width (CW) | 0.156″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.005″ | 0.01″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ | Threads per Inch (TPI) | 8 |
| Coating | TiN | Cutting Edge Length (L) | 0.405″ |
| Grade | GPM6B | Height | 0.344″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.22
