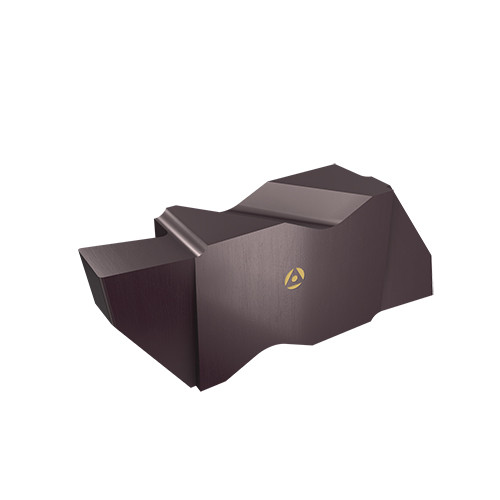

FLGP-3125R AC3R
Grooving Insert; 1/8″ CW × 0.18″ Max Depth × 0.195″ Thickness ; Carbide ; AC3R ; TiAlN
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.195″ | Chip Breaker Type | PR |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC3R | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.405″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Internal and External Grooving #3 Gage FloLock Inserts with 5° Positive Rake and Right Hand Clamping Notch | Country of Origin | USA |
