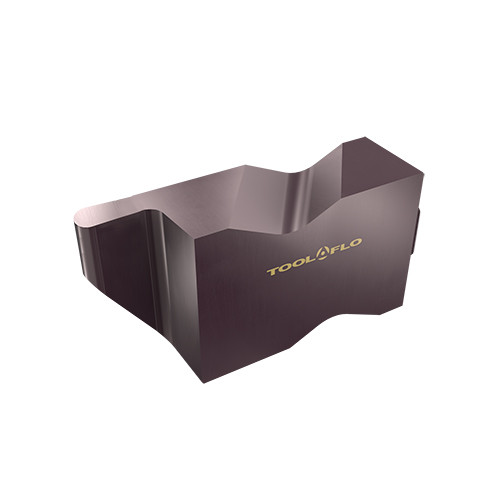

FLR-2062L AC3R
Grooving Insert; 1/8″ CW × 0.11″ Max Depth × 0.15″ Thickness ; Carbide ; AC3R ; TiAlN
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.062″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.11″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.15″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC3R | Cutting Edge Length (L) | 0.267″ |
| Shape | Parrallelogram | Height | 0.219″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Full Nose Radius Grooving #2 Gage FloLock Inserts with Left Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Length
3.87500
Package Width
1.62000
Package Height
.43750
Package Weight
0.006
