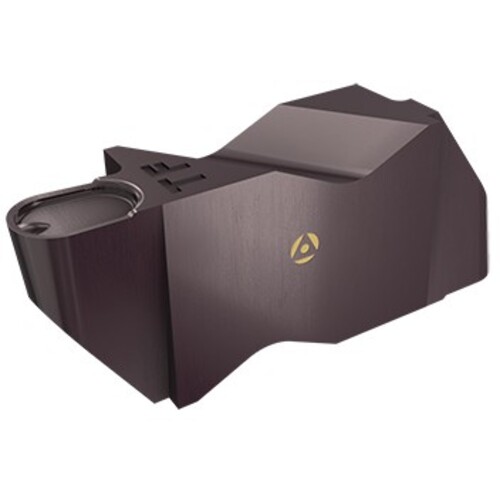

FLR-3031R-CB C3
Grooving Insert; 0.06 mm CW × 0.13 mm Max Depth × 0.2 mm Thickness ; Carbide ; C3 Uncoated ; AlTiN
| Cutting Width (CW) | 0.06 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.03 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.13 mm | Chip Breaker Type | HCB |
| Thread Pitch Maximum (TPX) | 0.344 mm | Measurement Type | Metric |
| Insert Thickness (S) | 0.2 mm | Threads per Inch (TPI) | 8 |
| Coating | AlTiN | Body Material | Carbide |
| Grade | C3 Uncoated | Cutting Edge Length (L) | 0.4 mm |
| Shape | Parrallelogram | Height | 0.34 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.22
