TPGN160312 MD220

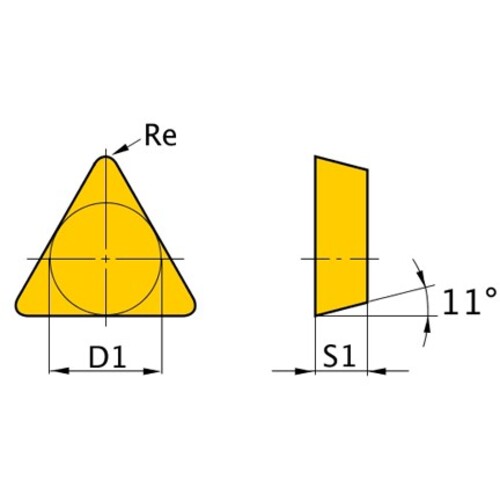

Turning Insert; TPG323 MD220 ; 9.525 mm IC ; 1.2 mm Corner Radius ; PCD ; Neutral
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | MD220 |
| Corner Radius (RE) | 1.2 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 2.4 mm |
| Cutting Edge Material | PCD |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
