DNGA 443 KBN05M, 3/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, MEGACOAT, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 1/2″ IC × 3/64″ Corner Radius ; KBN05M ; CBN ; MEGACOAT

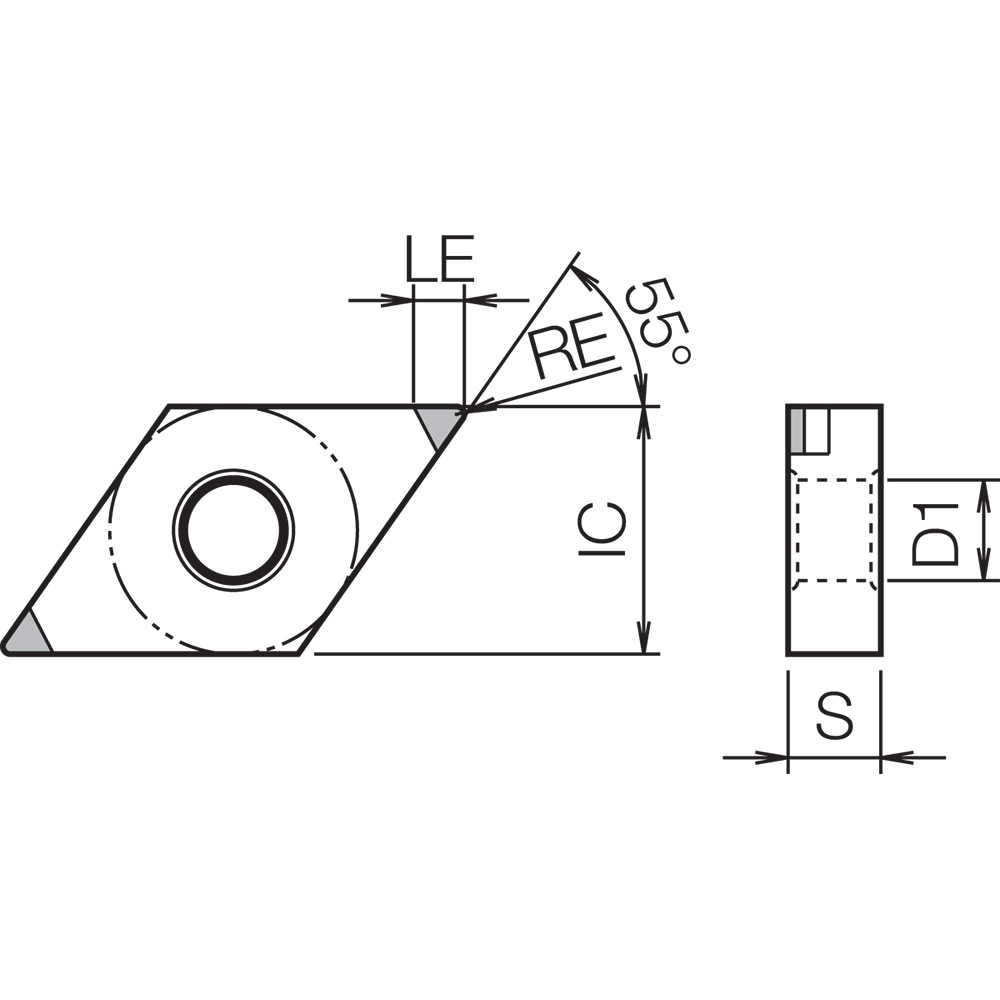

| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | Copying | External Turning | Tool Type | Turning Insert |
| Insert Style | DNGA | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 2 |
| Insert Size | 443 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Diamond |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Coating | MEGACOAT | Model No | 8835338 |
| Grade | KBN05M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.055
