VNMM 332 KPD010, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/8″ IC × 1/32″ Corner Radius ; KPD010 ; PCD

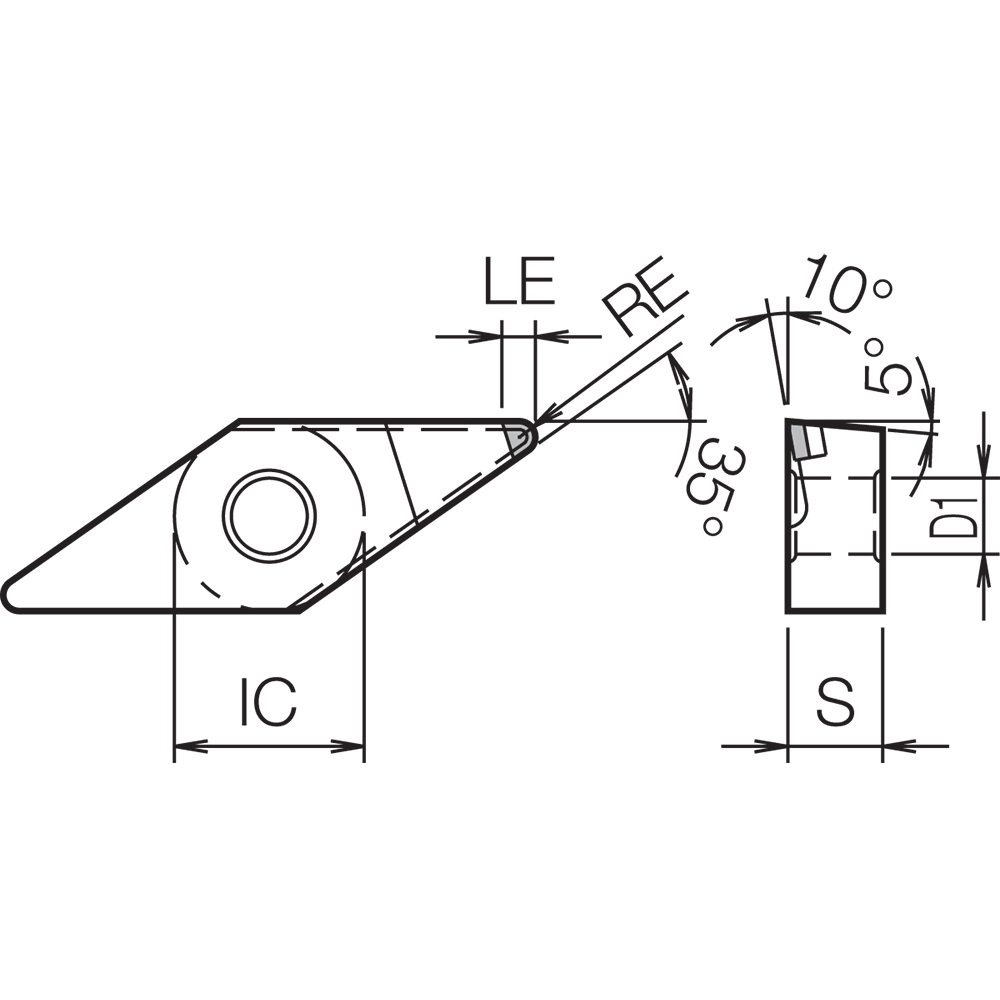

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Copying | External Turning | Facing | Undercutting | Tool Type | Turning Insert |
| Insert Style | VNMM | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 1 |
| Insert Size | 332 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Diamond |
| Cutting Edge Material | PCD | Series/List # | ISOI |
| Grade | KPD010 | Model No | 8816133 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.043
