CNMM 433 KPD010, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/2″ IC × 3/64″ Corner Radius ; KPD010 ; PCD

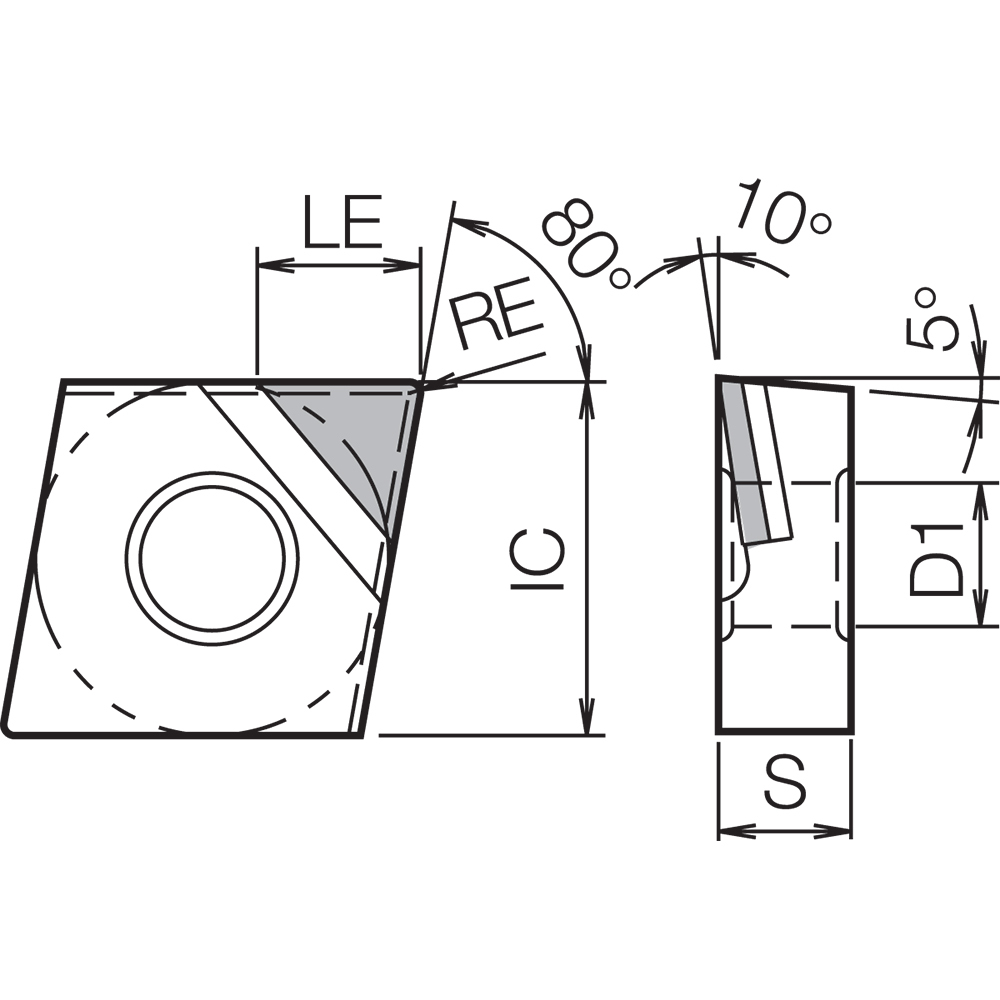

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CNMM | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 1 |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | PCD | Series/List # | ISOI |
| Grade | KPD010 | Model No | 8817270 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.040
