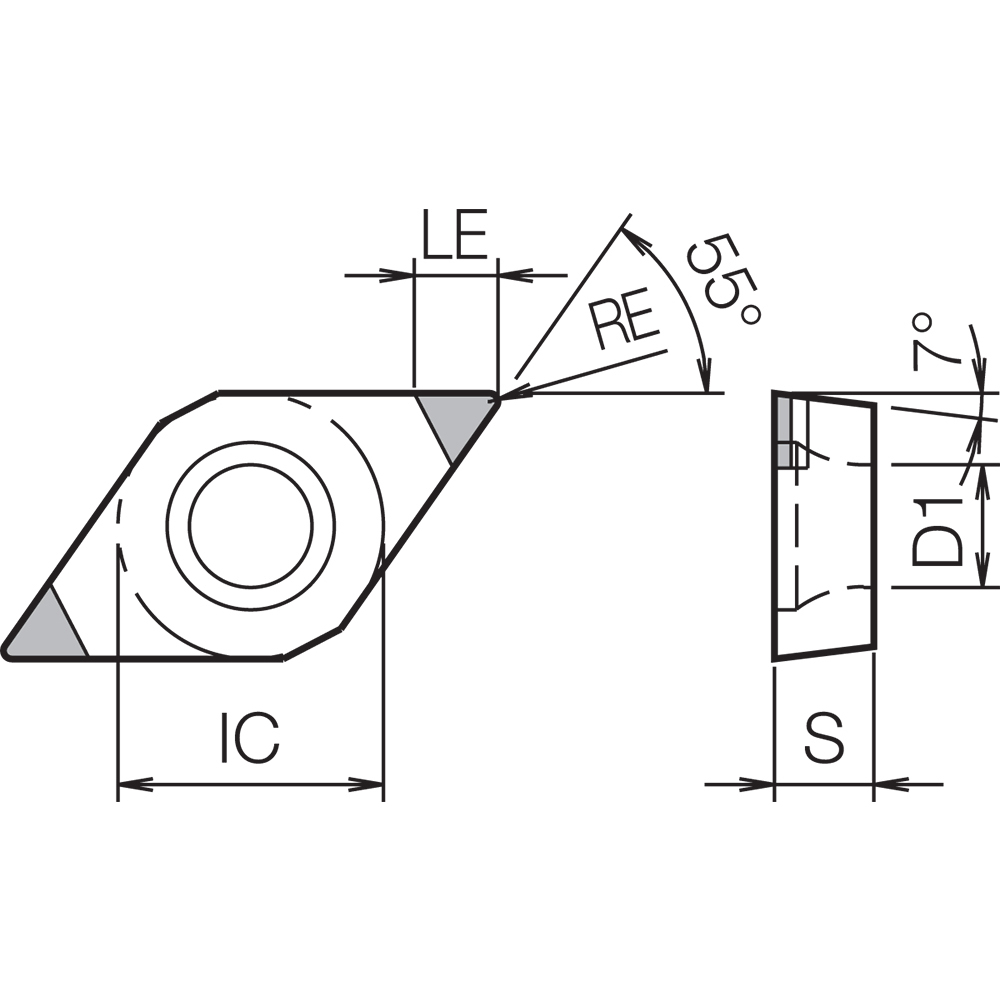

DCMW 3252 KBN35M, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, MEGACOAT, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 3/8″ IC × 1/32″ Corner Radius ; KBN35M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Back Boring | Copying | External Turning | Tool Type | Turning Insert |
| Insert Style | DCMW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 2 |
| Insert Size | 3252 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Diamond |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Coating | MEGACOAT | Model No | 8828775 |
| Grade | KBN35M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.031
