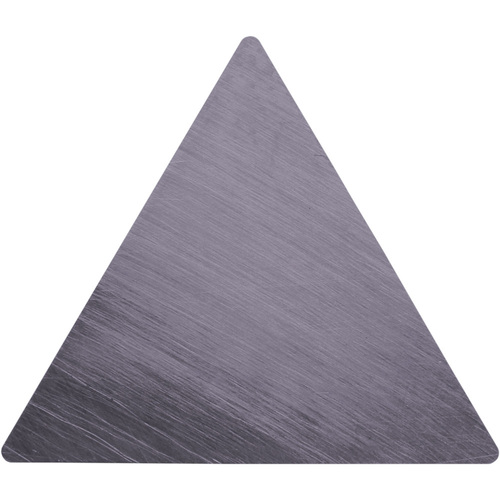

TPG 222 PT600M, 1/32″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Al2O3/TiC (MEGACOAT), 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 1/4″ IC × 1/32″ Corner Radius ; PT600M ; Ceramic ; | Al2O3 | TiC |
| Applicable Material | | Cast Iron | Hard Materials | | Grade | PT600M |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |

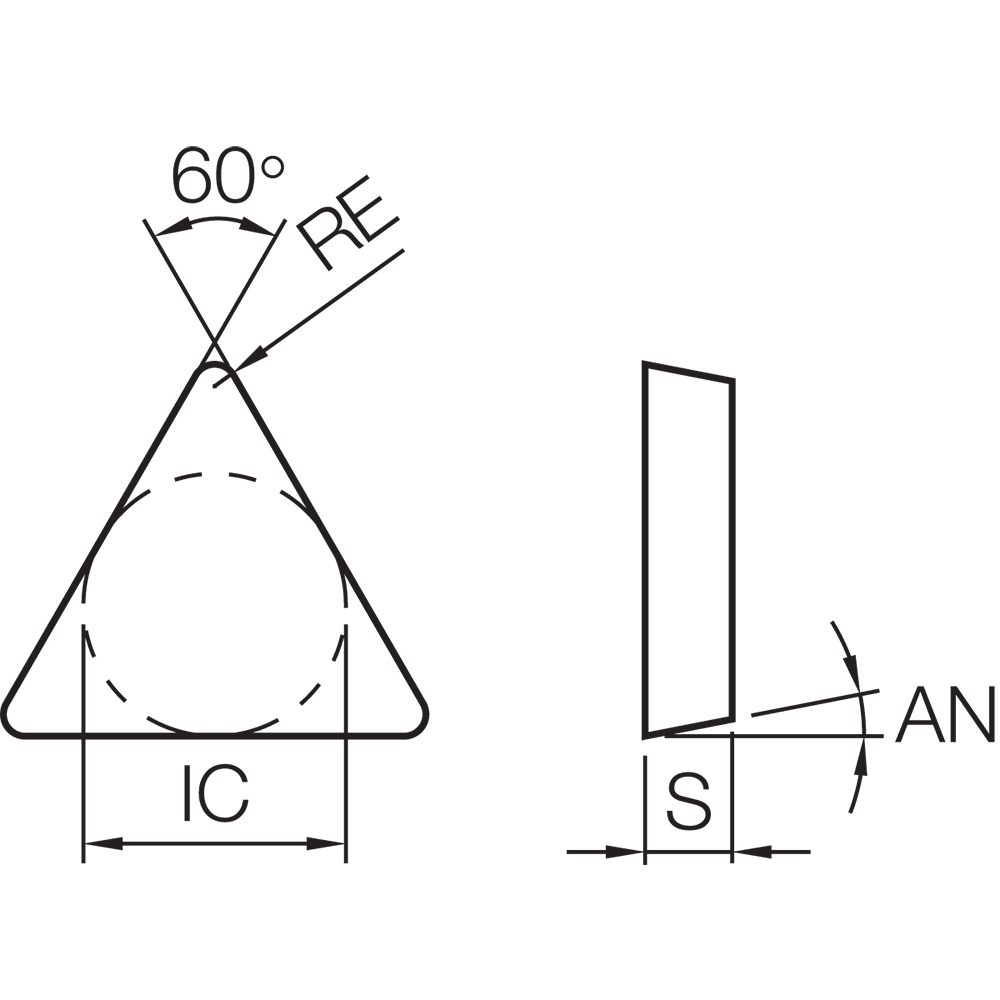

| Insert Style | TPG | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 3 |
| Insert Size | 222 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Coating | | Al2O3 | TiC | | Model No | 8828053 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.061
