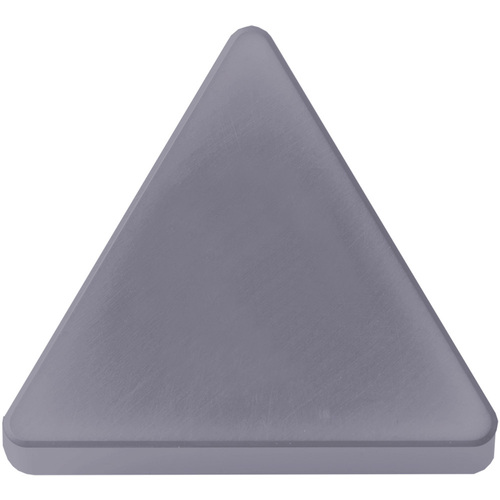

TNG 332 PT600M, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Al2O3/TiC (MEGACOAT), 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/32″ Corner Radius ; PT600M ; Ceramic ; | Al2O3 | TiC |
| Applicable Material | | Cast Iron | Hard Materials | | Grade | PT600M |
| Application | Copying | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | TNG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 6 |
| Insert Size | 332 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Coating | | Al2O3 | TiC | | Model No | 8828041 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.081
