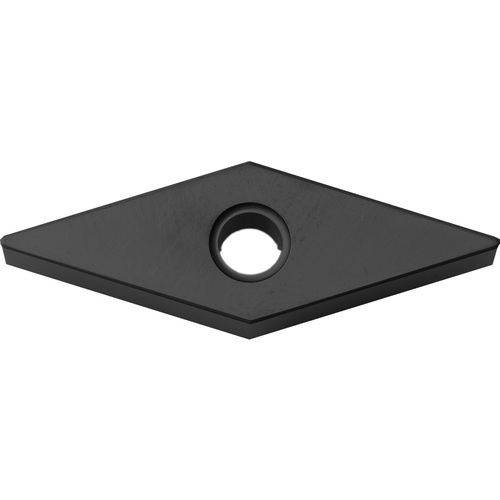

VNGA 332 KT66, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/8″ IC × 1/32″ Corner Radius ; KT66 ; Ceramic
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Copying | External Turning | Facing | Undercutting | Tool Type | Turning Insert |
| Insert Style | VNGA | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
| Insert Size | 332 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Diamond |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Grade | KT66 | Model No | 8830539 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.096
