CNMA 432 A66N, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Al2O3/TiC (TiN Coat), 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/2″ IC × 1/32″ Corner Radius ; A66N ; Ceramic ; | Al2O3 | TiC |

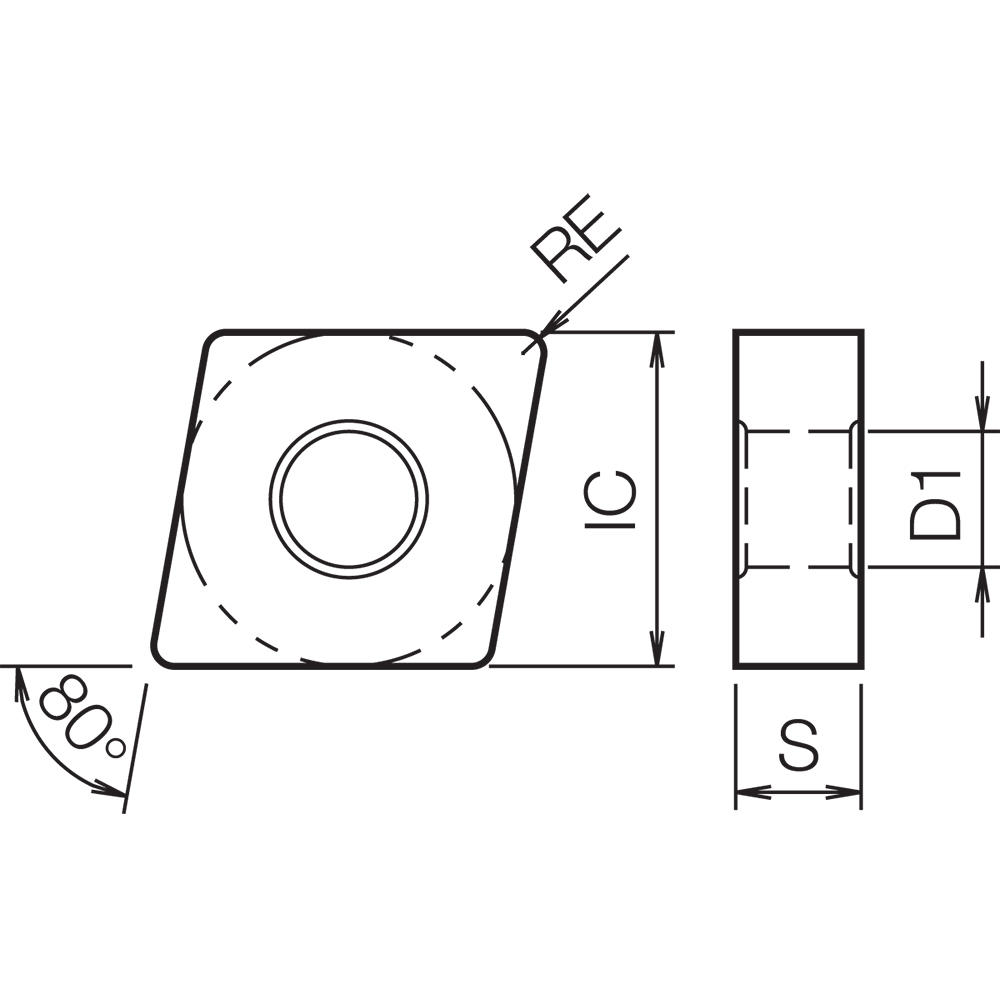

| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CNMA | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Coating | | Al2O3 | TiC | | Model No | 8800384 |
| Grade | A66N |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.092
