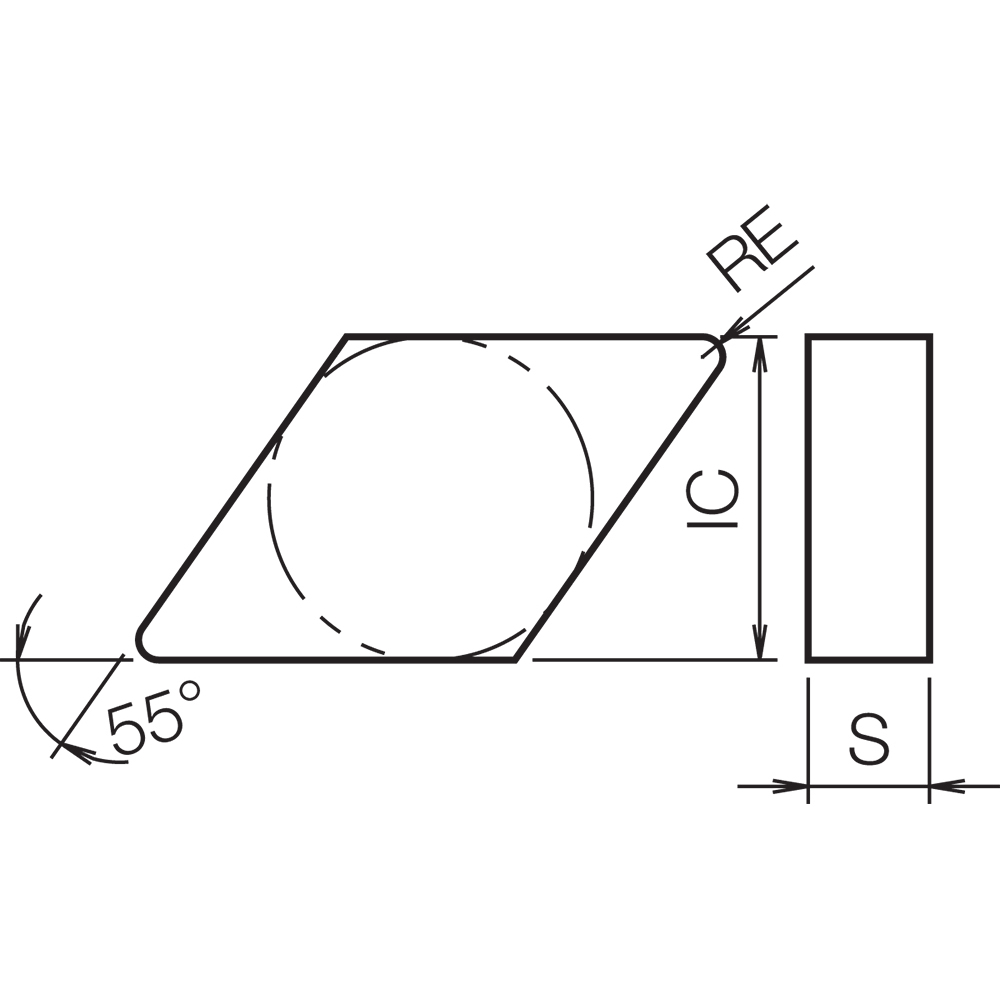

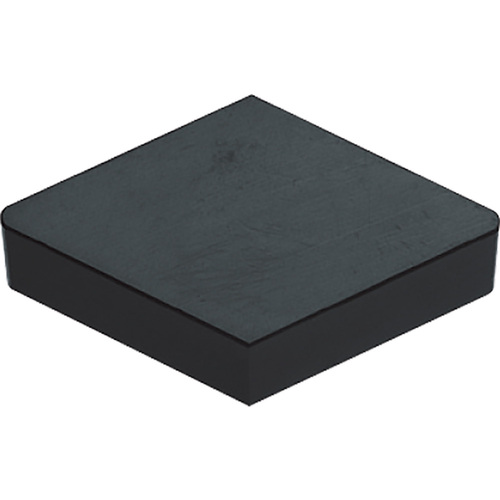

DNG 451 A65, 1/64″ Corner Radius, 5/16″ Thick, 1/2″ Inscribed Circle, Al2O3/TiC, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 1/2″ IC × 1/64″ Corner Radius ; A65 ; Ceramic ; | Al2O3 | TiC |
| Applicable Material | | Cast Iron | Hard Materials | | Grade | A65 |
| Application | Back Turning | Copying | External Turning | Tool Type | Turning Insert |
| Insert Style | DNG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 451 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Diamond |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Coating | | Al2O3 | TiC | | Model No | 8800997 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.220
