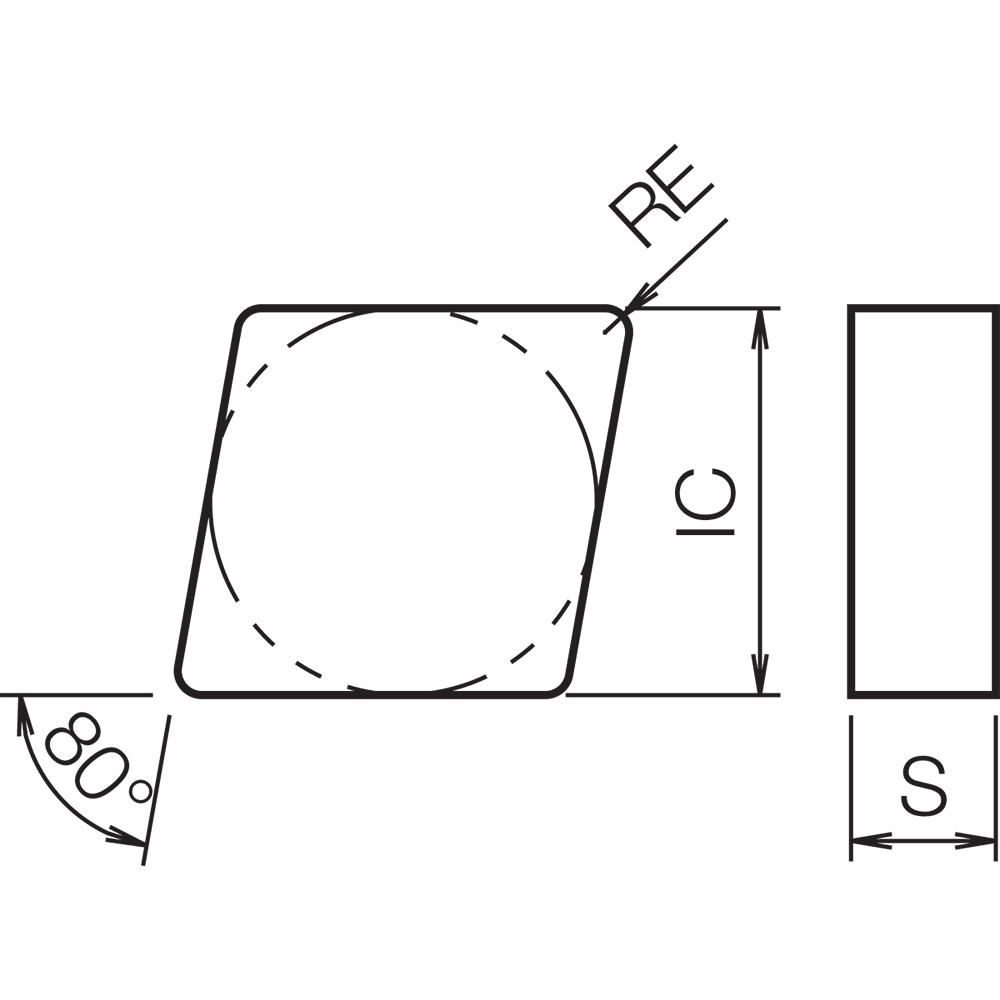

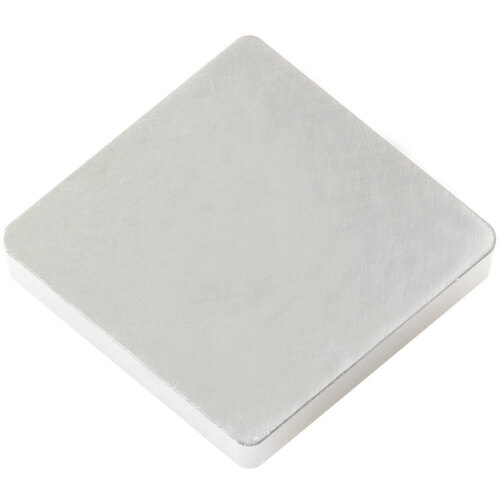

CNG 433 KA30, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Al2O3, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/2″ IC × 3/64″ Corner Radius ; KA30 ; Ceramic ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Cast Iron | | Grade | KA30 |
| Application | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | CNG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 4 |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Coating | | Al2O3 | TiN | TiCN | | Model No | 8809221 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.100
