WBGW 15151 KBN10M, 1/64″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, MEGACOAT, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 3/16″ IC × 1/64″ Corner Radius ; KBN10M ; CBN ; MEGACOAT

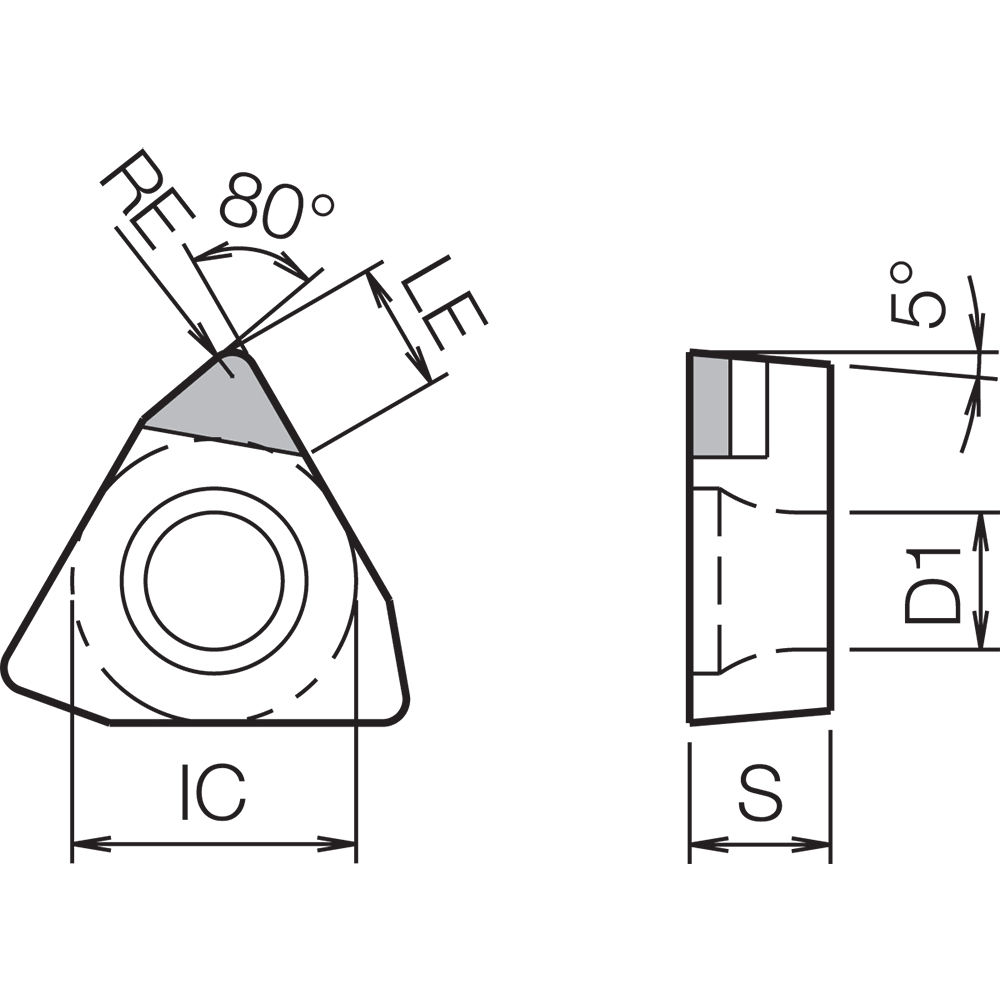

| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WBGW | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 1 |
| Insert Size | 15151 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3/32″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/16″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Trigon |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Coating | MEGACOAT | Model No | 8826755 |
| Grade | KBN10M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.022
