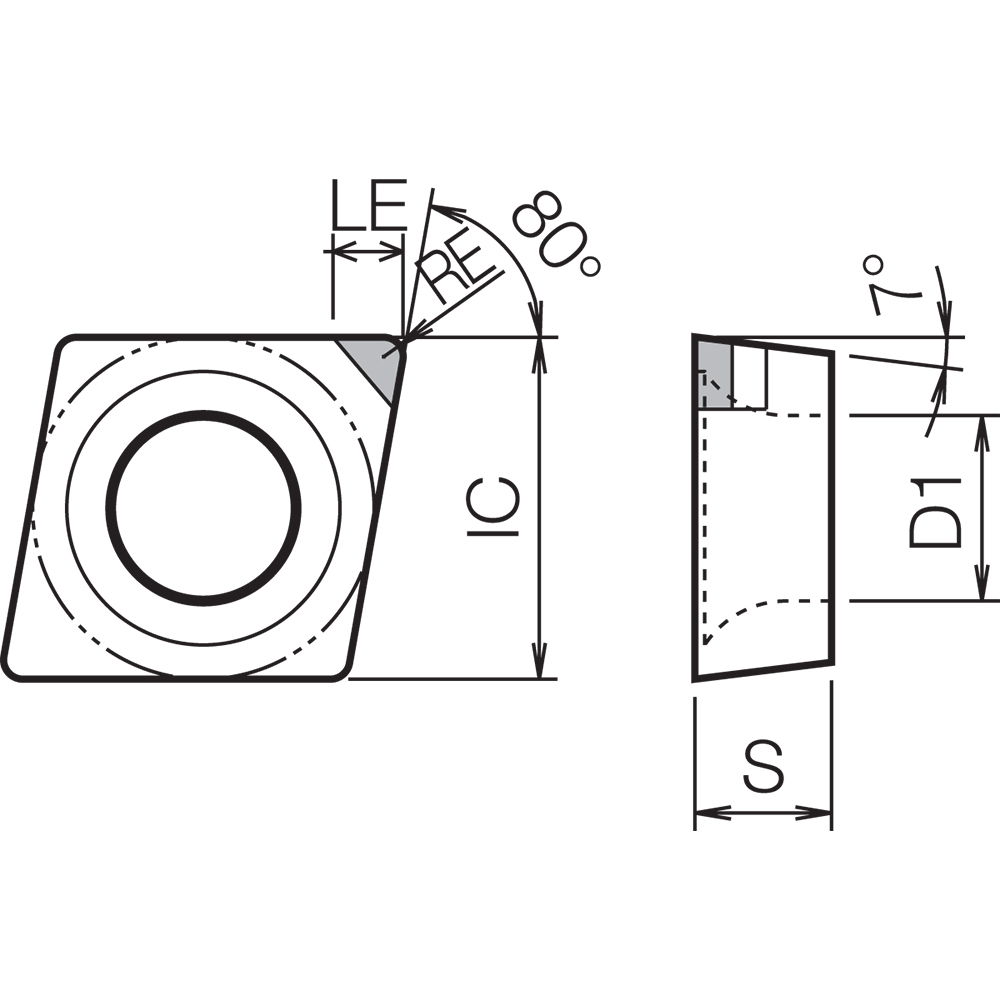

CCMW 141105 KBN10M, 0.008″ Corner Radius, 0.071″ Thick, 0.169″ Inscribed Circle, MEGACOAT, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 0.169″ IC × 0.008″ Corner Radius ; KBN10M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CCMW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 1 |
| Insert Size | 141105 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.071″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 0.169″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Coating | MEGACOAT | Model No | 8826765 |
| Grade | KBN10M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.021
