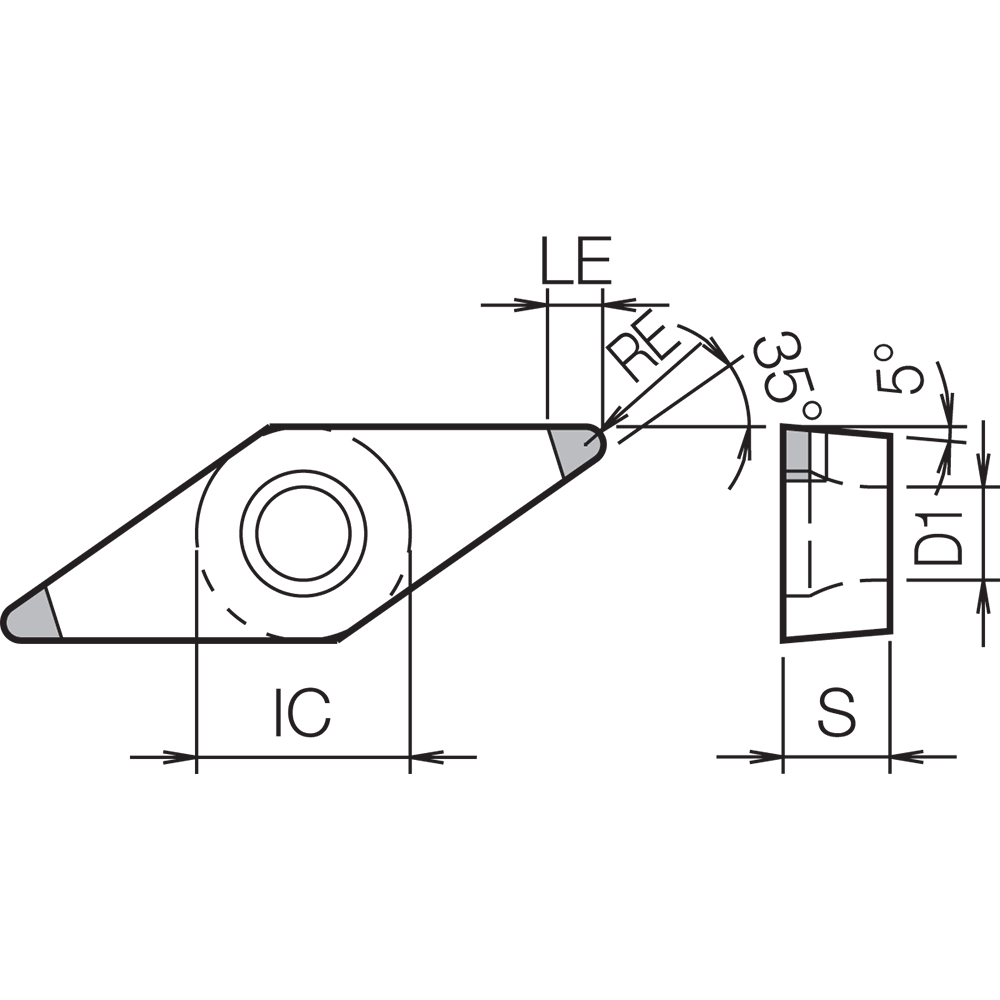

VBGW 331 KBN525, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/8″ IC × 1/64″ Corner Radius ; KBN525 ; CBN
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting | Tool Type | Turning Insert |
| Insert Style | VBGW | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Diamond |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Grade | KBN525 | Model No | 8821369 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.039
