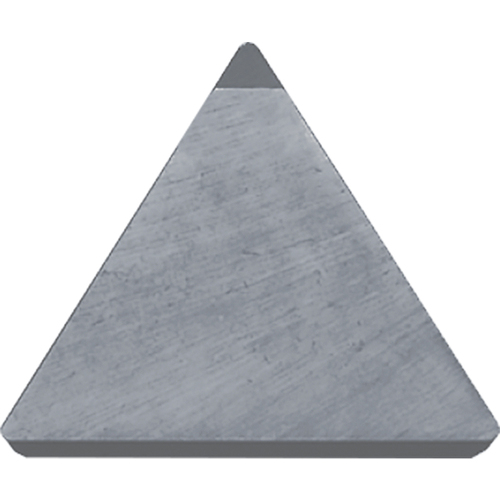

TPG 321 KBN525, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/64″ Corner Radius ; KBN525 ; CBN

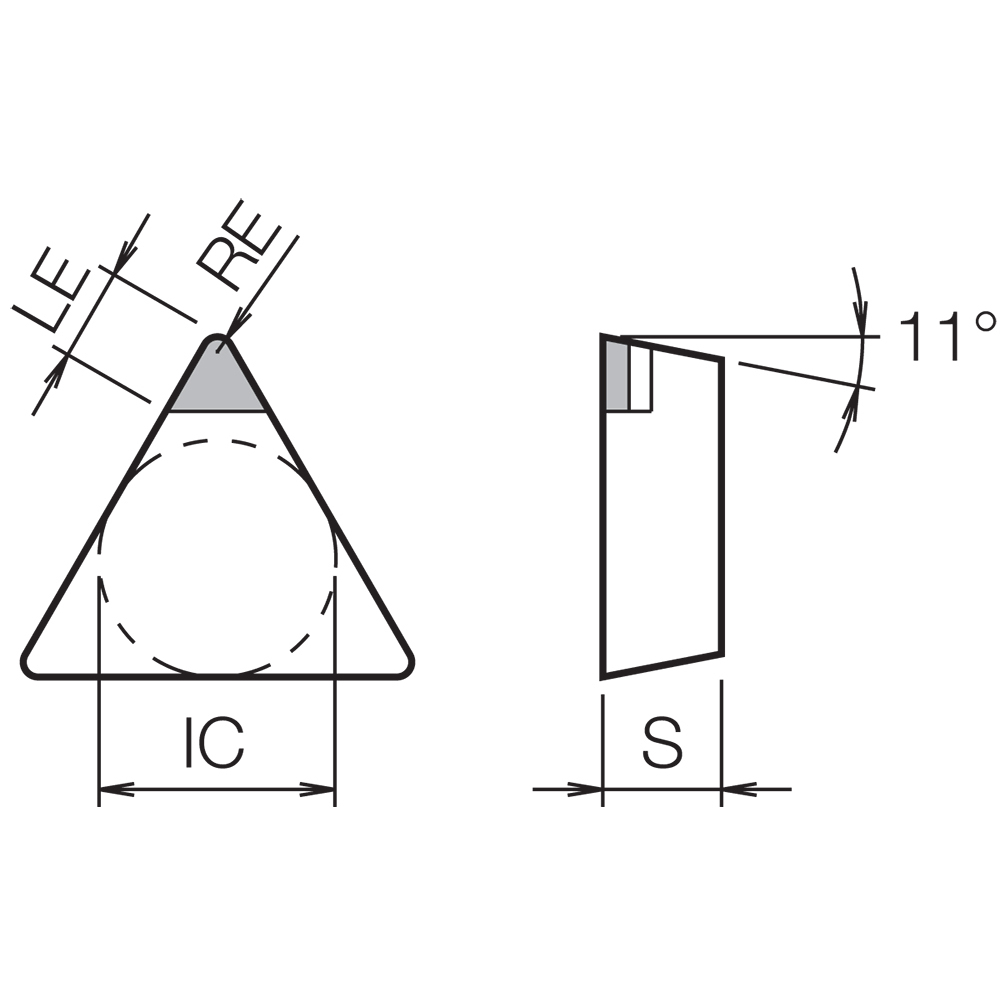

| Applicable Material | | Hard Materials | | Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | TPG | Number of Cutting Edges | 1 |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 321 | Quantity | 1 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 60° Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Cutting Edge Material | CBN | Model No | 8821314 |
| Grade | KBN525 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.032
