TNGA 332 KBN525, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/32″ Corner Radius ; KBN525 ; CBN

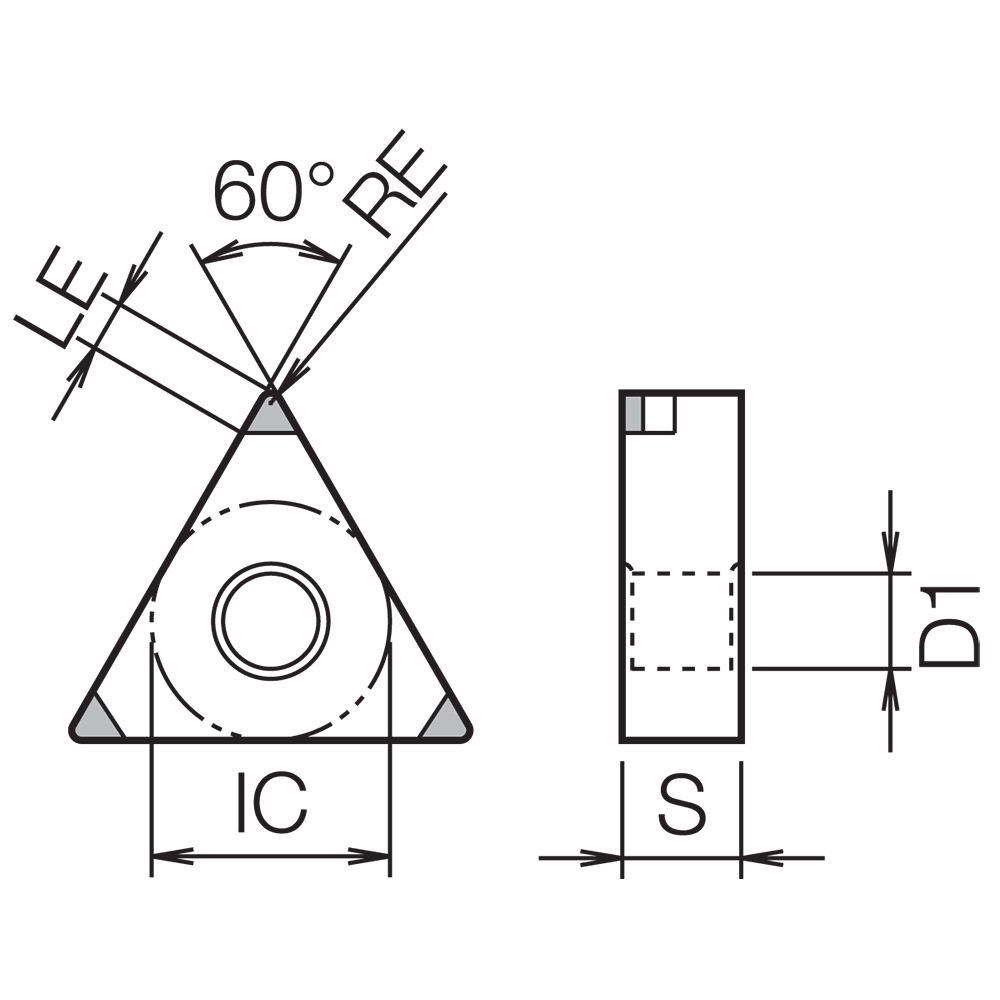

| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Boring | Chamfering | Copying | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | TNGA | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 3 |
| Insert Size | 332 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | CBN | Series/List # | ISOI |
| Grade | KBN525 | Model No | 8819257 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.037
