DCMT 3251 AP KPD001, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 3/8″ IC × 1/64″ Corner Radius ; KPD001 ; PCD

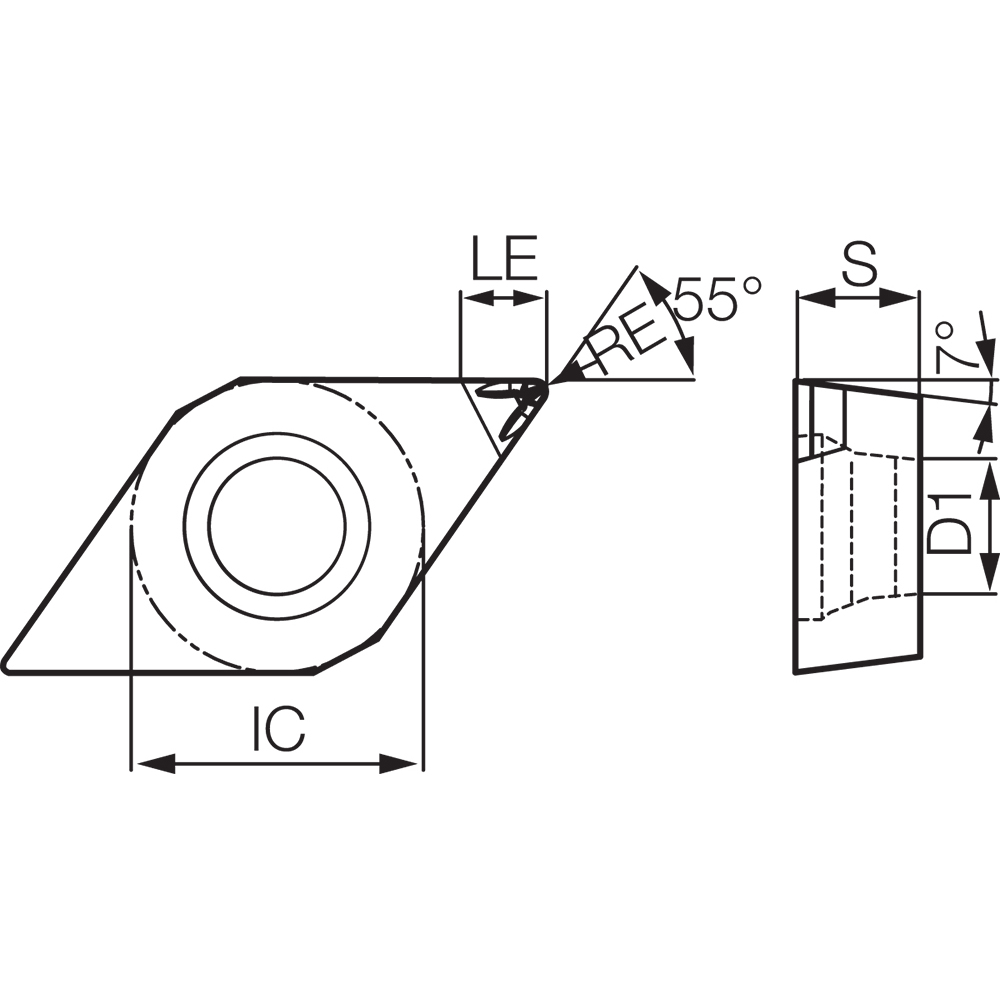

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Turning Insert |
| Application | Back Boring | Copying | External Turning | Clearance Angle Major (AN) | 7 Degrees |
| Insert Style | DCMT | Number of Cutting Edges | 2 |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 3251 | Chip Breaker Type | AP |
| Insert Thickness (S) | 5/32″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Diamond |
| Cutting Edge Material | PCD | Series/List # | ISOI |
| Grade | KPD001 | Model No | 8865304 |
| Fixing Hole Diameter (D1) | 0.1732″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.030
