WBMT 12105 KPD001, 0.008″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 5/32″ IC × 0.008″ Corner Radius ; KPD001 ; PCD

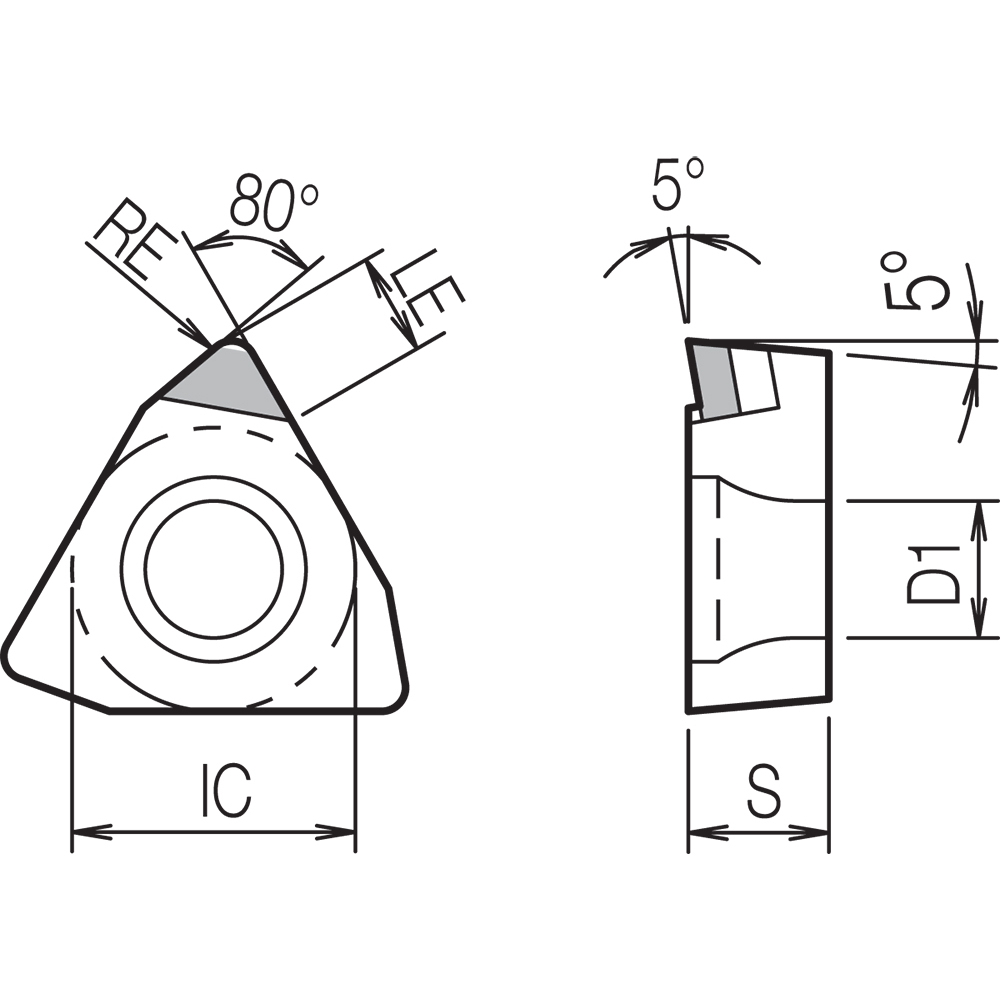

| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 1 |
| Insert Size | 12105 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/16″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 5/32″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Trigon |
| Cutting Edge Material | PCD | Series/List # | ISOI |
| Grade | KPD001 | Model No | 8837001 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.021
