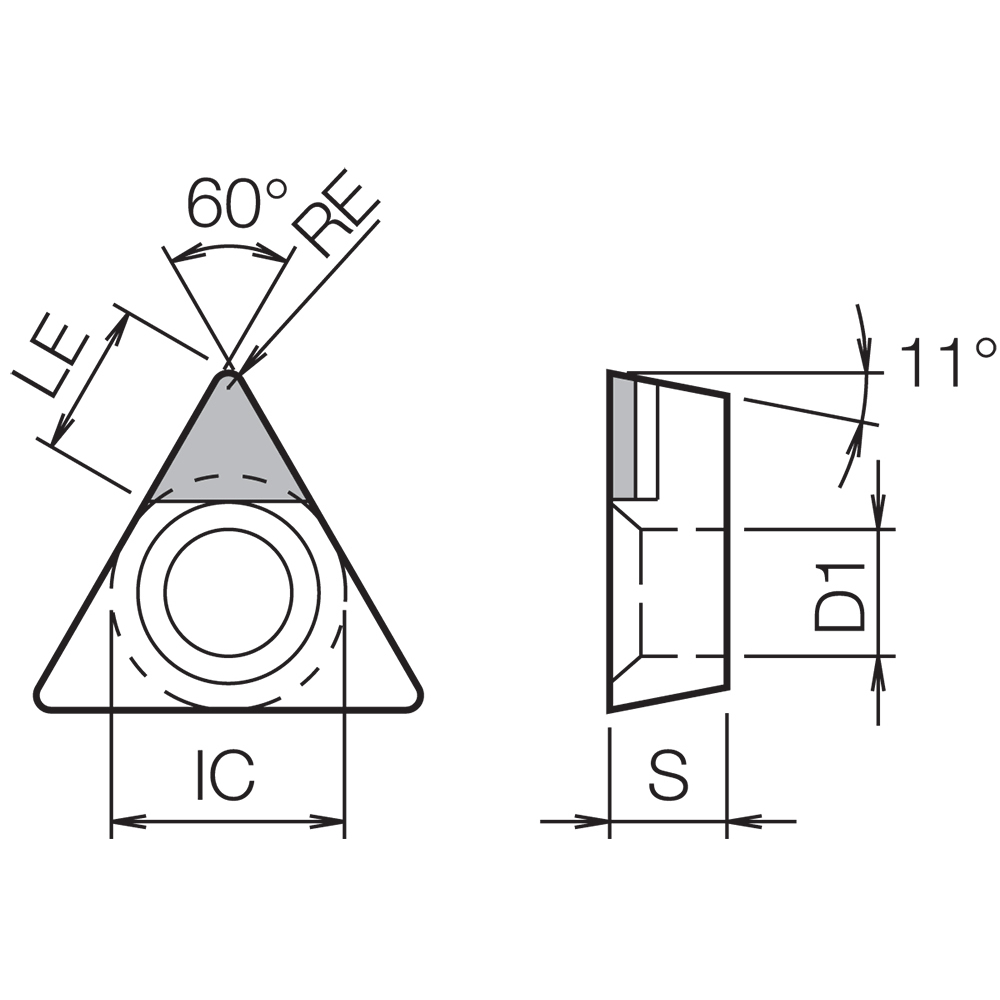

TPGB 18151 KPD001, 1/64″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 7/32″ IC × 1/64″ Corner Radius ; KPD001 ; PCD
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.1181″ |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TPGB | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 1 |
| Insert Size | 18151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 7/32″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | PCD | Series/List # | ISOI |
| Grade | KPD001 | Model No | 8830971 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.023
