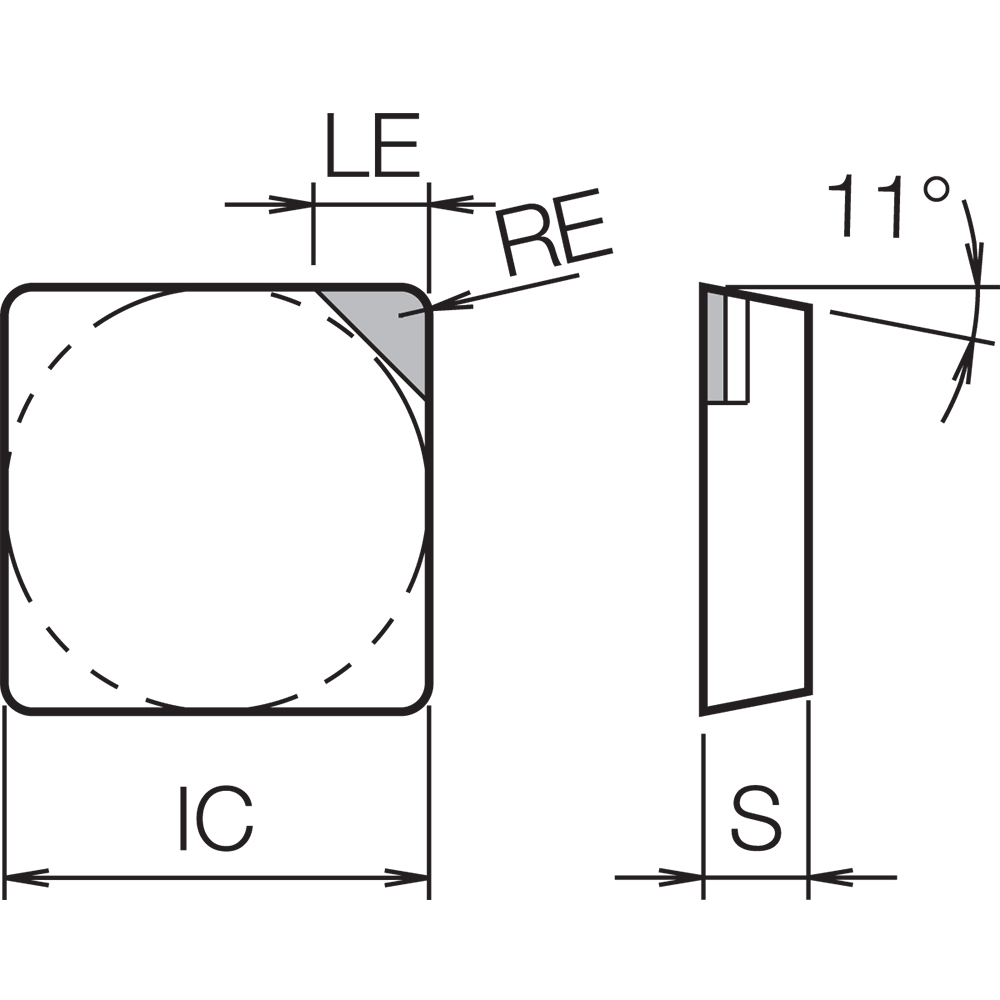

SPG 421 KPD001, 1/64″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 1/64″ Corner Radius ; KPD001 ; PCD
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | SPG | Number of Cutting Edges | 1 |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 421 | Quantity | 1 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees | Series/List # | ISOI |
| Cutting Edge Material | PCD | Model No | 8831040 |
| Grade | KPD001 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.036
