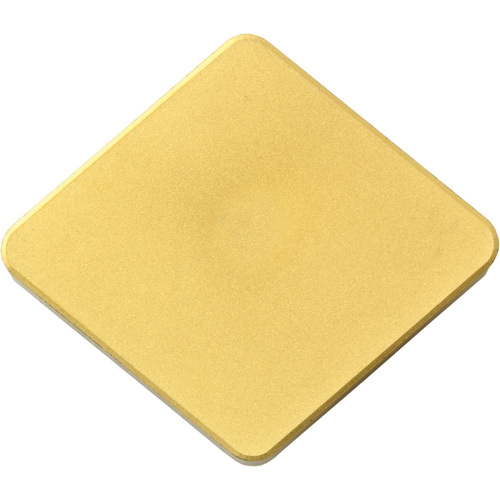

CNM 323 KBN900, 3/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 3/8″ IC × 3/64″ Corner Radius ; KBN900 ; CBN

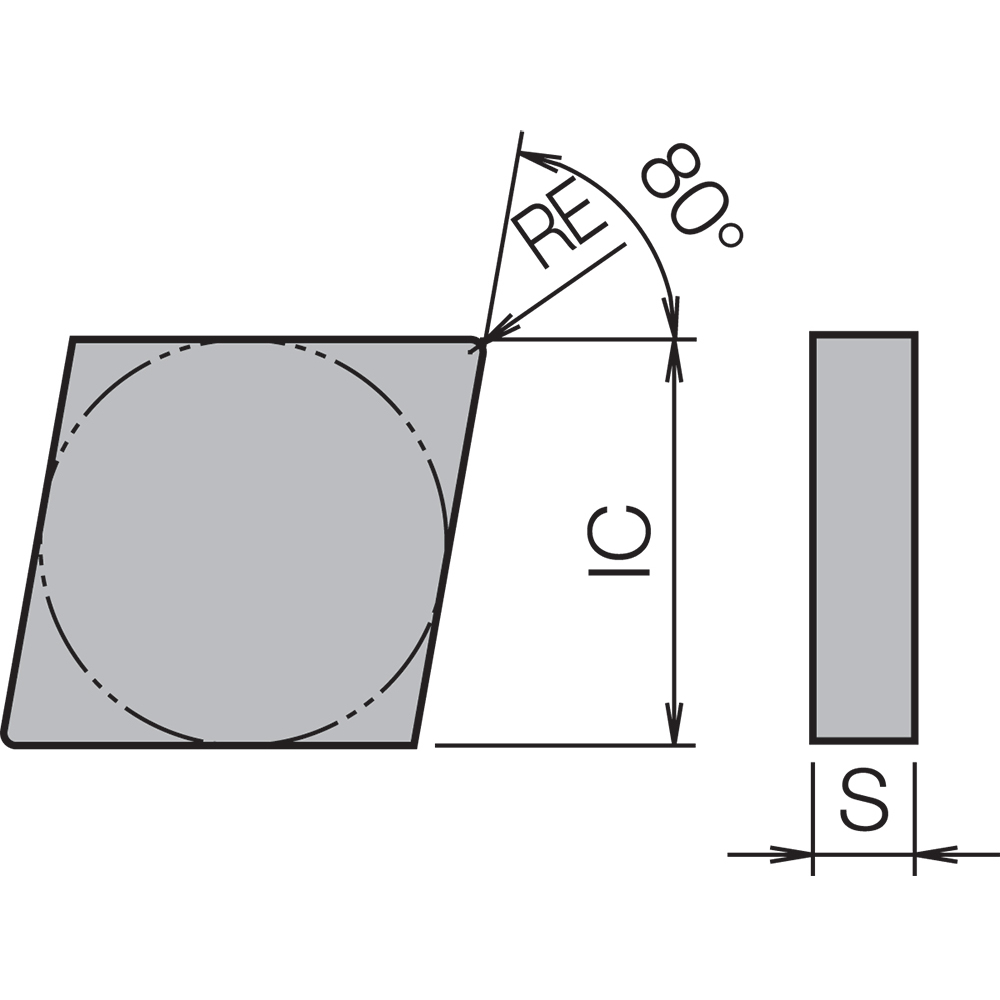

| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turning Insert |
| Application | External Turning | Facing | Clearance Angle Major (AN) | 0 Degrees |
| Insert Style | CNM | Number of Cutting Edges | 2 |
| Corner Radius (RE) | 3/64″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 323 | Quantity | 1 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 80° Diamond |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | ISOI |
| Cutting Edge Material | CBN | Model No | 8817114 |
| Grade | KBN900 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.023
