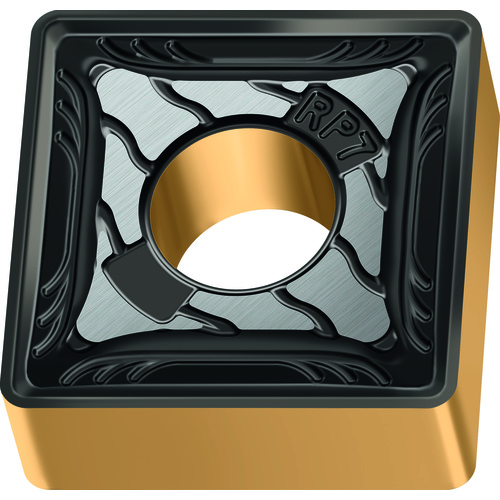

SNMG150616-RP7 WPP20G
Turning Insert; Square ; 15.875 mm Length × 15.875 mm IC × 1.6 mm Corner Radius ; WPP20G ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 1.5 mm |
| Insert Style | SNMG | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 1.6 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 150616 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 15.875 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | RP7 |
| Inscribed Circle Diameter (IC) | 15.875 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Depth Maximum (CDX) | 6 mm |
| Grade | WPP20G | Cutting Edge Effective Length (LE) | 15.875 mm |
| Fixing Hole Diameter (D1) | 6.35 mm | Model No | SNMG150616-RP7 WPP20G |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.042
