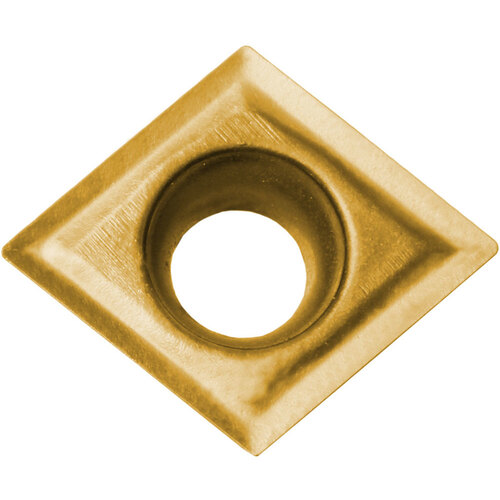

CPGT 2151 PV720, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN (MEGACOAT NANO), 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/4″ IC × 1/64″ Corner Radius ; PV720 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CPGT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 2151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Diamond |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | TiCN | Model No | 8863234 |
| Grade | PV720 |
Product Features
| Country of Origin | Japan |
