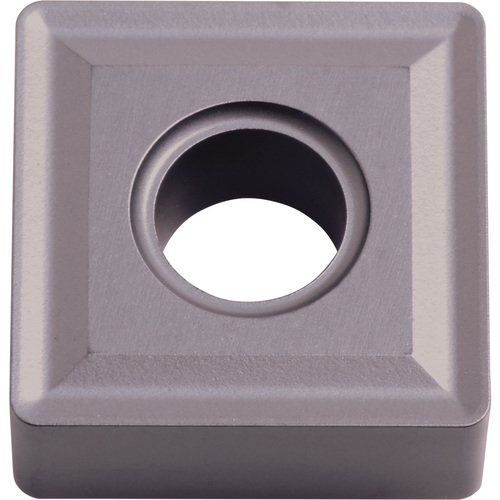

SNMG 643 PR1125, 3/64″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, TiAlN, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 3/4″ IC × 3/64″ Corner Radius ; PR1125 ; Carbide ; TiAlN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.3126″ |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 8 |
| Insert Size | 643 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiAlN | Model No | 8826190 |
| Grade | PR1125 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.666
