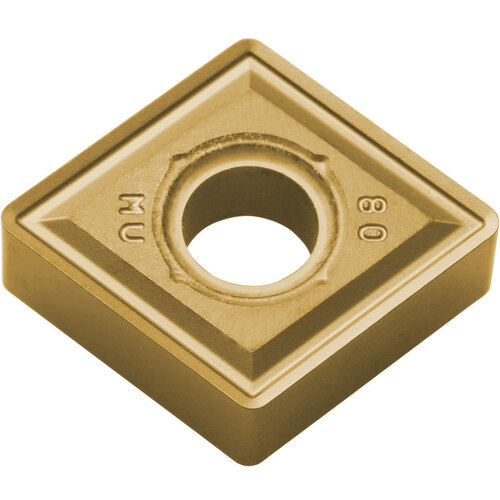

CNMG 542 MUSP CA6525, 1/32″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, TiCl2O3/TiN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 5/8″ IC × 1/32″ Corner Radius ; CA6525 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 1/4″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
| Insert Size | 542 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | MUSP |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CA6525 | Model No | 8825368 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.487
