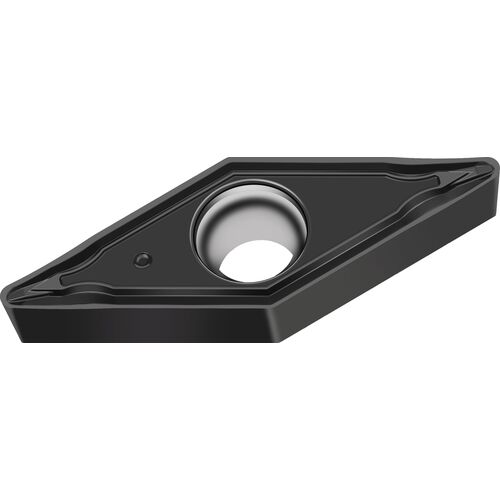

VCMT160404-FM4 WSM01
Turning Insert; 35 Rhombic ; 16.606 mm Length × 9.525 mm IC × 0.4 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.1 mm |
| Insert Style | VCMT | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 160404 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 16.606 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | FM4 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 1.5 mm |
| Grade | WSM01 | Cutting Edge Effective Length (LE) | 16.606 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Model No | VCMT160404-FM4 WSM01 |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.02
