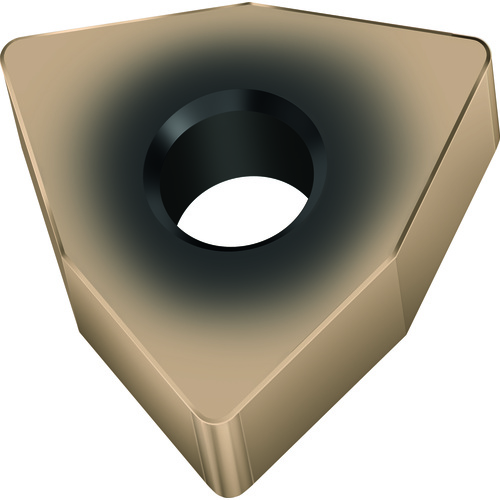

WNGA080404SM-MWS WCH10C
Turning Insert; 80 Trigon ; 8.687 mm Length × 12.7 mm IC × 0.4 mm Corner Radius ; WCH10C ; Ceramic ; TiN
| Applicable Material | | Hard Materials | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 8.687 mm | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 4.763 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | SM-MWS |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | TiN | Shape | 80° Trigon |
| Grade | WCH10C | Cutting Depth Maximum (CDX) | 0.5 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 8.687 mm |
| Tool Type | Turning Insert | Model No | WNGA080404SM-MWS WCH10C |
| Min D.O.C. | 0.1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.009
