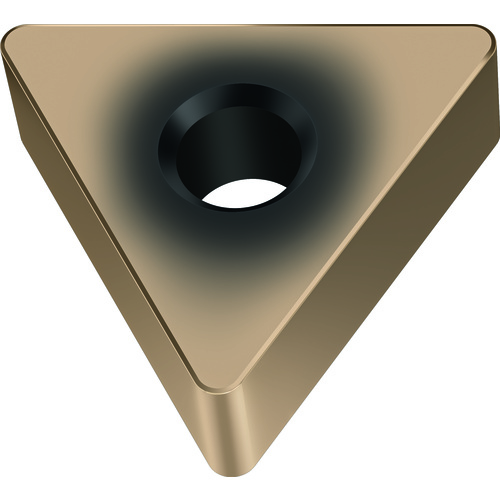

TNGA160412SM-S WCH10C
Turning Insert; Triangle ; 16.498 mm Length × 9.525 mm IC × 1.2 mm Corner Radius ; WCH10C ; Ceramic ; TiN
| Applicable Material | | Hard Materials | | Depth of Cut Maximum (APMX) | 1 mm |
| Corner Radius (RE) | 1.2 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 16.498 mm | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 4.763 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | SM |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | TiN | Shape | Triangle |
| Grade | WCH10C | Cutting Depth Maximum (CDX) | 1 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Cutting Edge Effective Length (LE) | 16.498 mm |
| Tool Type | Turning Insert | Model No | TNGA160412SM-S WCH10C |
| Min D.O.C. | 0.1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.004
