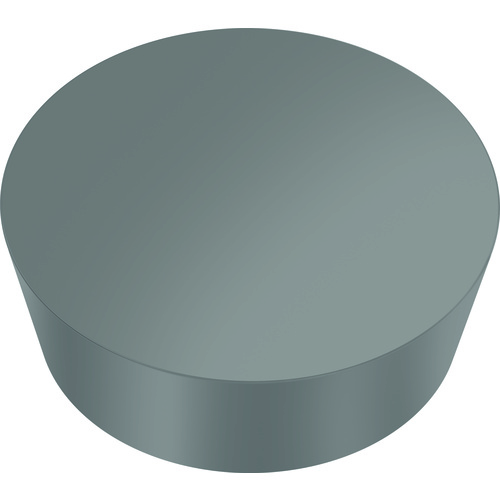

RPGN120400E WIS10
Turning Insert; Round ; 12.7 mm Length × 12.7 mm IC × 6.35 mm Corner Radius ; WIS10 ; Ceramic ; Si3N4
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Insert Style | RPGN | Depth of Cut Maximum (APMX) | 3.6 mm |
| Corner Radius (RE) | 6.35 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 120400 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | E |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Shape | Round |
| Coating | Si3N4 | Cutting Depth Maximum (CDX) | 3.6 mm |
| Grade | WIS10 | Model No | RPGN120400E WIS10 |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.007
