TPMX 181505 WP CA510, 0.008″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, TiCl2O3/TiN, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 7/32″ IC × 0.008″ Corner Radius ; CA510 ; Carbide ; | Al2O3 | TiN | TiCN |

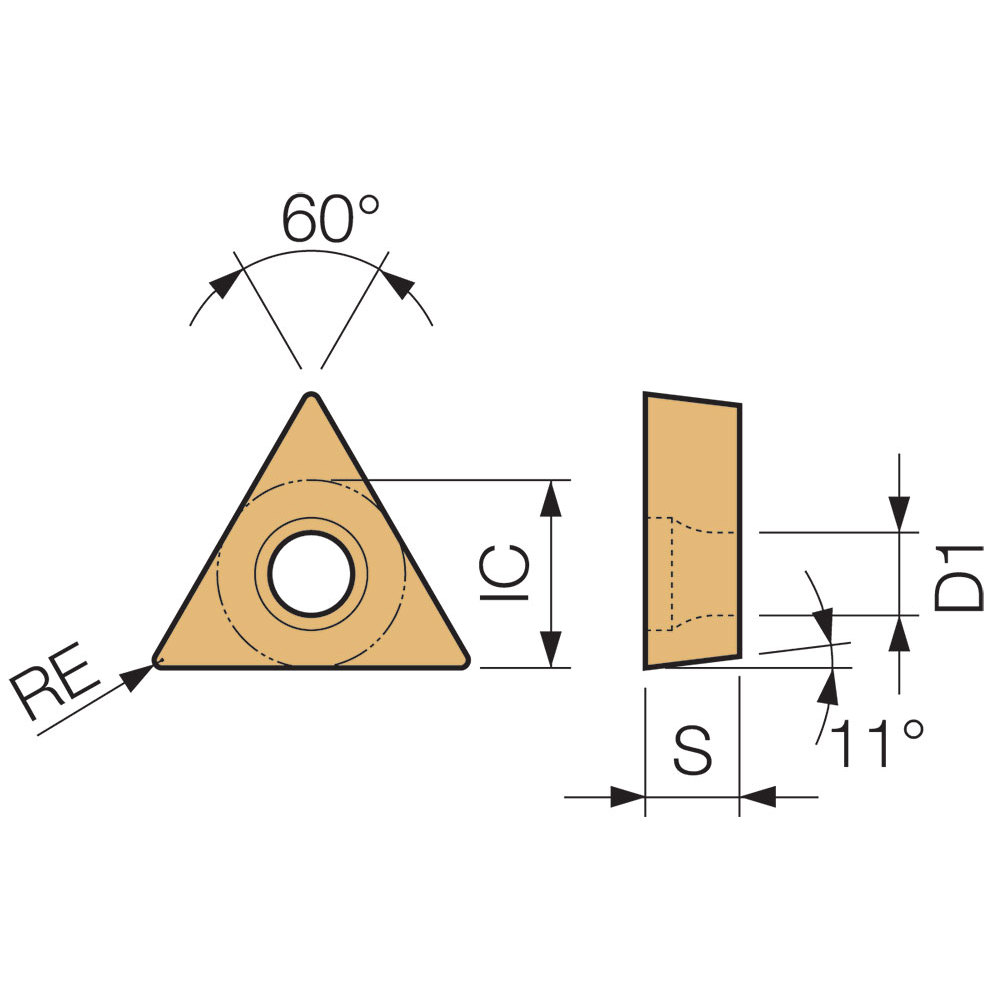

| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TPMX | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 3 |
| Insert Size | 181505 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | WP |
| Inscribed Circle Diameter (IC) | 7/32″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CA510 | Model No | 8859368 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.050
